MJTP2205B - Apem

MJTP2205B Details

• Manufacturer Part Number:

  MJTP2205B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  UK

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.40

• Manufacturer:

  APEM Inc

• YTEOL:

  8

• Actuator Color:

  BLACK

• Actuator Material:

  POLYETHYLENE

• Actuator Type:

  PLUNGER TYPE

• Body Breadth:

  8.4 mm

• Body Color:

  BLACK

• Body Height:

  22.6 mm

• Body Length or Diameter:

  10.55 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  SILVER

• Circuit Configuration:

  2X1

• Contact Bounce Time-Max:

  10 ms

• Contact Current(DC)-Max:

  0.05 A

• Contact (DC) Max Rating R Load:

  .05A@12VDC

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(DC)-Max:

  12 V

• Dielectric Withstand Volts:

  250VAC V

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  THERMOPLASTIC

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Switches:

  2

• Operating Force-Max:

  1.86 N

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

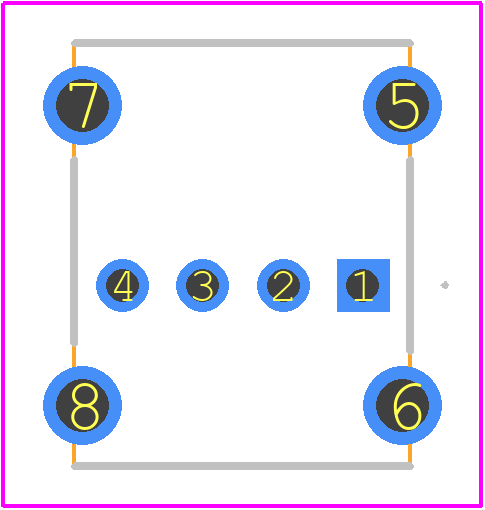

• PCB Hole Count:

  8

• Packing Method:

  BULK

• Sealing:

  MOLDED

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPST

• Switch Type:

  KEYPAD SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
