Description:The MJW10 series is a range of cost-optimized 10W isolated DC-DC converter within an encapsulated 1"x1" industrial standard package. The MJW10 series come in a shielded metal package and conducted EMI EN 55032 Class A approved without external components. By state-of-the-art circuit topology and 89% high efficiency could be achieved allowing an operating temperature of -40℃ to +80℃ as well as low standby power consumption.
The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the module. For thermal management, ensure good airflow around the module, and consider using a heat sink or thermal pad if the operating temperature exceeds 60°C.
To ensure EMC, follow proper PCB design and layout guidelines, use a metal enclosure, and add EMI filters or shielding if necessary. Also, ensure that the module is operated within the specified frequency range and that the input and output cables are properly shielded and routed.
The derating curve is typically provided by the manufacturer upon request. It shows the reduction in output power as a function of temperature. As the operating temperature increases, the output power decreases to prevent overheating. Consult the manufacturer for the specific derating curve for the MJW10-24D05.
Yes, the MJW10-24D05 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault detection. Consult the manufacturer for specific guidance and recommendations.
The MJW10-24D05 is commonly used in industrial control systems, telecommunications, data centers, and other applications requiring a high-reliability DC-DC converter. It's suitable for powering intermediate bus architectures, PoE devices, and other systems requiring a 24V output.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJW10-24D05 Overview

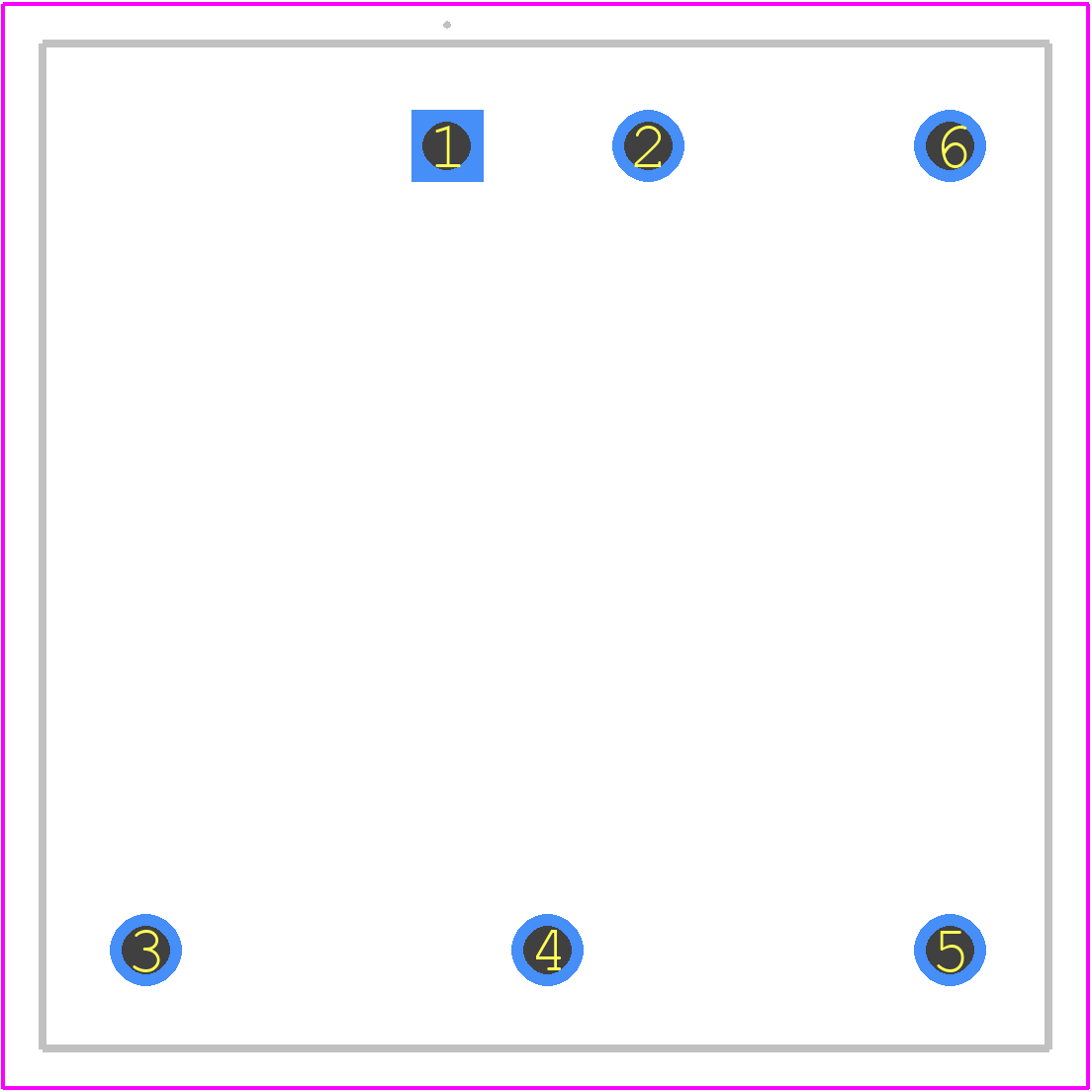

Use the download button to access the MJW10-24D05 schematic symbol, PCB footprint, and 3D model.
