MJW15-12D12 - Minmax

Description: The MJW15 series is a range of cost-optimized 15W isolated DC-DC converter within an encapsulated 1"x1" industrial standard package. There are 21 models available for 12, 24, 48VDC with wide 2:1 input voltage range and fixed output voltage regulation. The MJW15 series come in a shielded metal package and conducted EMI EN 55032 Class A approved without external components. By state-of-the-art circuit topology and 91% high efficiency could be achieved allowing an operating temperature of -40℃ to +90℃ as well

Download MJW15-12D12 Model

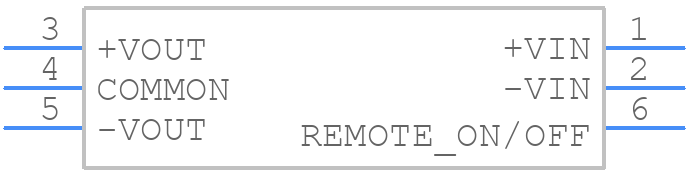

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

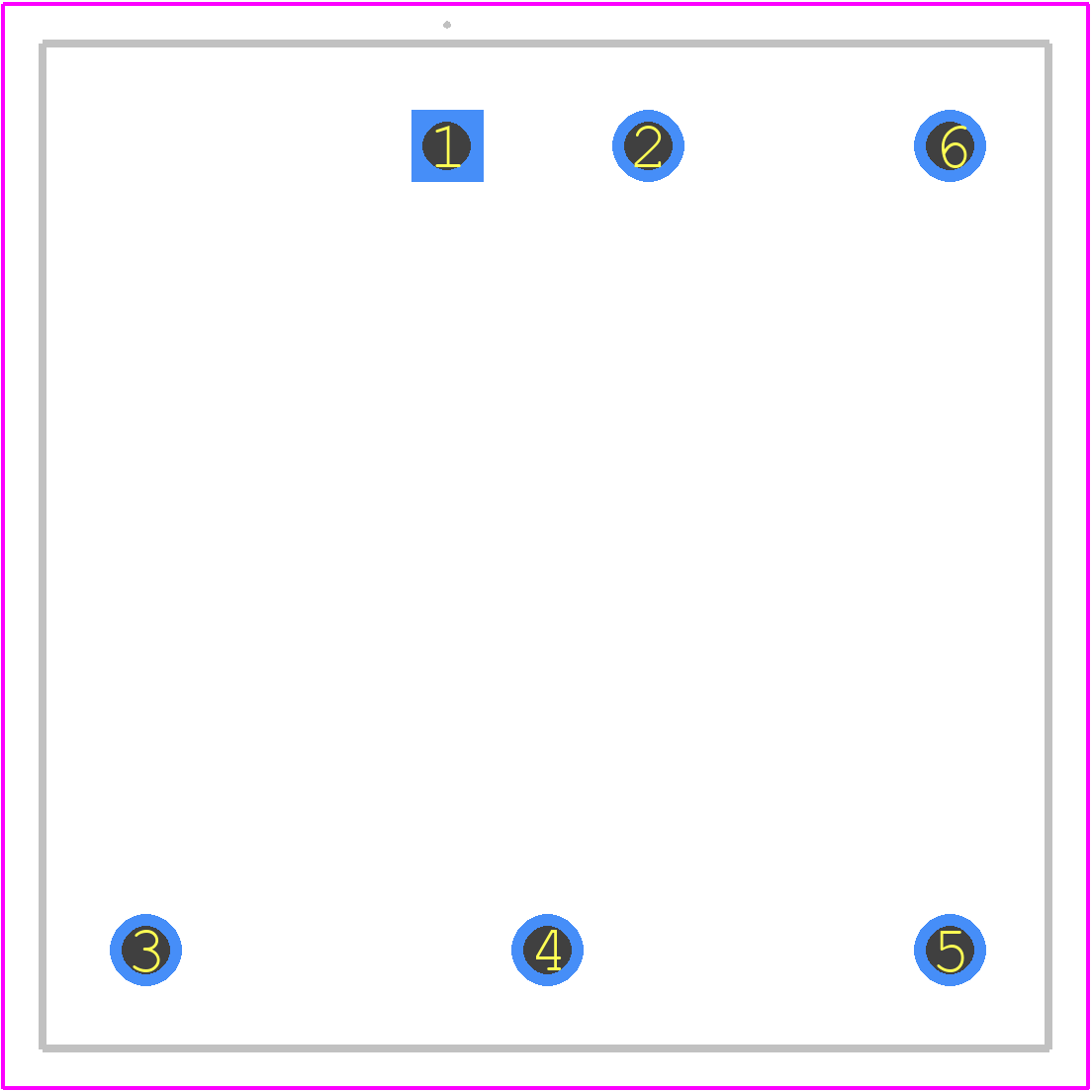

MJW15-12D12 - Minmax PCB footprint - Other - Other - MJW15_Inch
click to zoom
3D Models
MJW15-12D12 - Minmax  - 3D model - Other - MJW15_Inch
click to zoom

MJW15-12D12 Details

  • Manufacturer Part Number:

    MJW15-12D12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    ALSO -12V ADDITIONAL OUTPUT VOLTAGE AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CE, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    89%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e3

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.625 A

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,.8

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT, UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Screening Level:

    IEC/EN/UL 62368-1

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.03 s

  • Width:

    25.4 mm

MJW15-12D12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and ensuring a solid copper pour on the top and bottom layers. Additionally, it's recommended to use thermal vias to connect the thermal pad to the bottom layer.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature, and ensure good airflow around the device.
  • Although the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and minimize the risk of damage to the device.
  • Yes, the MJW15-12D12 is suitable for use in switching power supply applications. However, it's essential to ensure that the device is properly bypassed and filtered to minimize the effects of high-frequency noise and voltage spikes.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 16V or higher. A low-ESR ceramic or film capacitor is recommended to minimize the risk of oscillation and ensure stable operation.
