MJW15-24D15 footprint, schematic symbol and 3D model by Minmax

MJW15-24D15 - Minmax

Description: The MJW15 series is a range of cost-optimized 15W isolated DC-DC converter within an encapsulated 1"x1" industrial standard package. There are 21 models available for 12, 24, 48VDC with wide 2:1 input voltage range and fixed output voltage regulation. The MJW15 series come in a shielded metal package and conducted EMI EN 55032 Class A approved without external components. By state-of-the-art circuit topology and 91% high efficiency could be achieved allowing an operating temperature of -40℃ to +90℃ as well

Download MJW15-24D15 Model

Schematic
symbols

PCB
footprints

3D
models

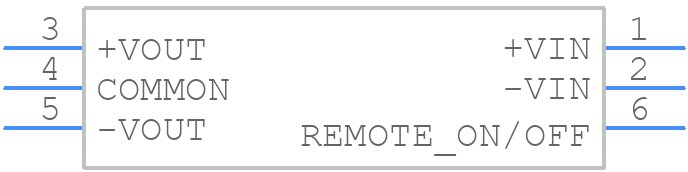

Symbol

click to zoom

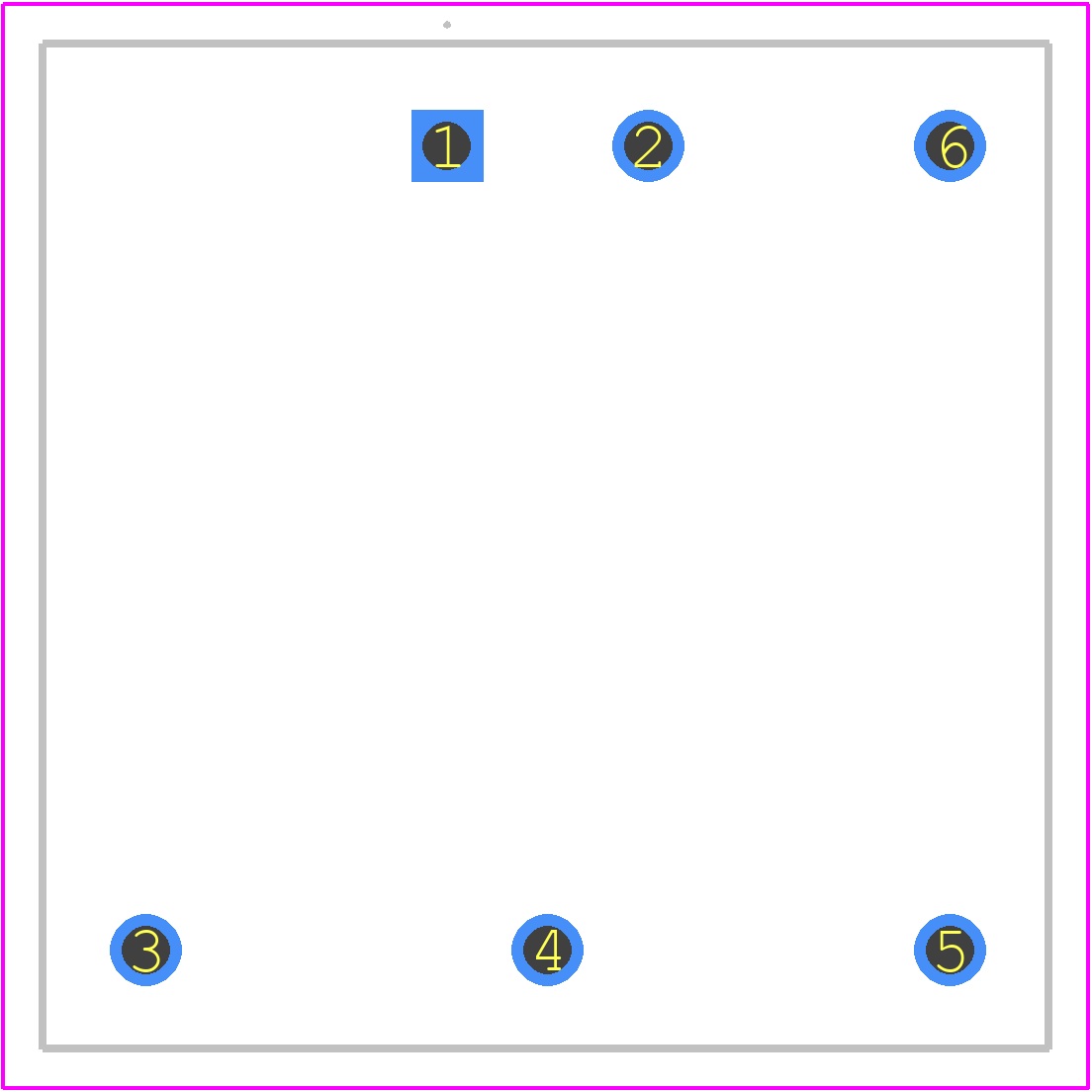

PCB Footprints

MJW15-24D15 - Minmax PCB footprint - Other - Other - MJW15_Inch

click to zoom

3D Models

MJW15-24D15 - Minmax - 3D model - Other - MJW15_Inch

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MJW15-24D15
Part Number MJW15-24D15
Manufacturer Minmax
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - MJW15_Inch
Released Date Apr 11, 2024
Last Modified Date Jul 24, 2024 3:15 PM UTC
Pinout / Pin List Click Here (Member Only)

MJW15-24D15 Details

Manufacturer Part Number:
MJW15-24D15
Manufacturer:
Minmax Technology Co Ltd

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MJW15-24D15 Overview

Use the download button to access the MJW15-24D15 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MJW15, or try a keyword search, such as Power Supply Modules
