Description:The MJW15 series is a range of cost-optimized 15W isolated DC-DC converter within an encapsulated 1"x1" industrial standard package. There are 21 models available for 12, 24, 48VDC with wide 2:1 input voltage range and fixed output voltage regulation. The MJW15 series come in a shielded metal package and conducted EMI EN 55032 Class A approved without external components. By state-of-the-art circuit topology and 91% high efficiency could be achieved allowing an operating temperature of -40℃ to +90℃ as well
OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT, UNDER VOLTAGE
Ripple Voltage (Main Out):
0.02651 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
15 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm
MJW15-24S05 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output capacitors close to the DC-DC converter, using a solid ground plane, and minimizing the loop area of the input and output traces. For thermal management, ensure good airflow around the converter, and consider adding a heat sink or thermal pad to the device.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and consider adding a metal enclosure or shield around the converter. Additionally, ensure that the input and output cables are properly routed and terminated.
The derating curve for the MJW15-24S05 is typically provided by the manufacturer upon request. However, as a general guideline, the output power of the converter may need to be derated by 1-2% per degree Celsius above the recommended operating temperature range to ensure reliable operation.
Yes, the MJW15-24S05 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization and load sharing. Consult with the manufacturer or a qualified engineer for guidance on implementing such a configuration.
The MTBF rating for the MJW15-24S05 is typically provided by the manufacturer and can vary depending on the specific application and operating conditions. However, as a general guideline, the MTBF rating for this device is typically in the range of 1-5 million hours.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJW15-24S05 Overview

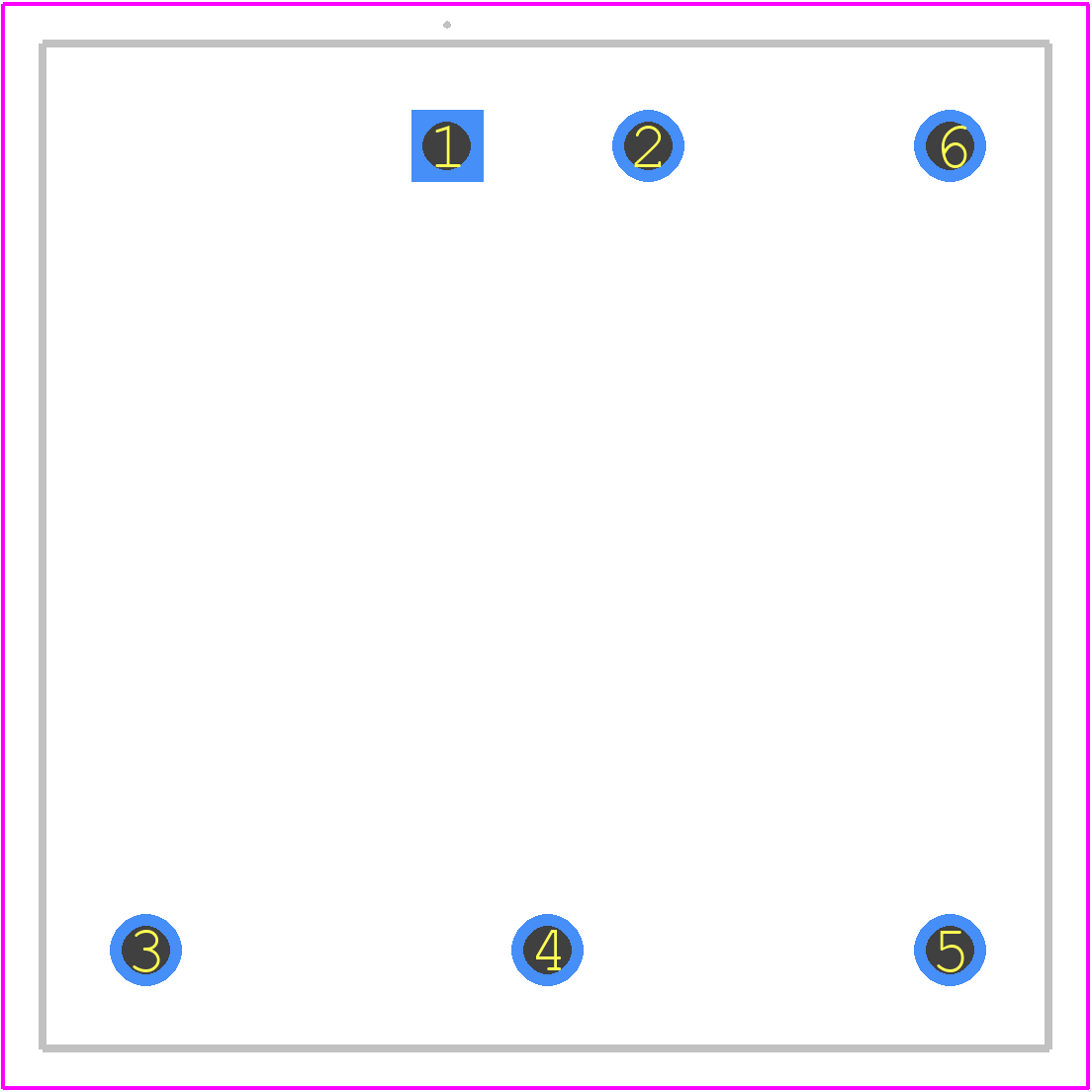

Use the download button to access the MJW15-24S05 schematic symbol, PCB footprint, and 3D model.
