MJWI15-48S12-HS - Minmax

Description: The MJWI15 series are cost optimized DC-DC converter modules offering 15W output power in a 1"x1"x 0.4" shielded metal package with industry standard pinout. All models provide ultra-wide 4:1 input voltage range and fixed output voltage regulation. State-of-the-art circuit topology provides a high efficiency up to 91% allowing an operating temperature range of -40℃ to +90℃ .*With heatsink

Download MJWI15-48S12-HS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MJWI15-48S12-HS - Minmax - PCB symbol
click to zoom
PCB Footprints

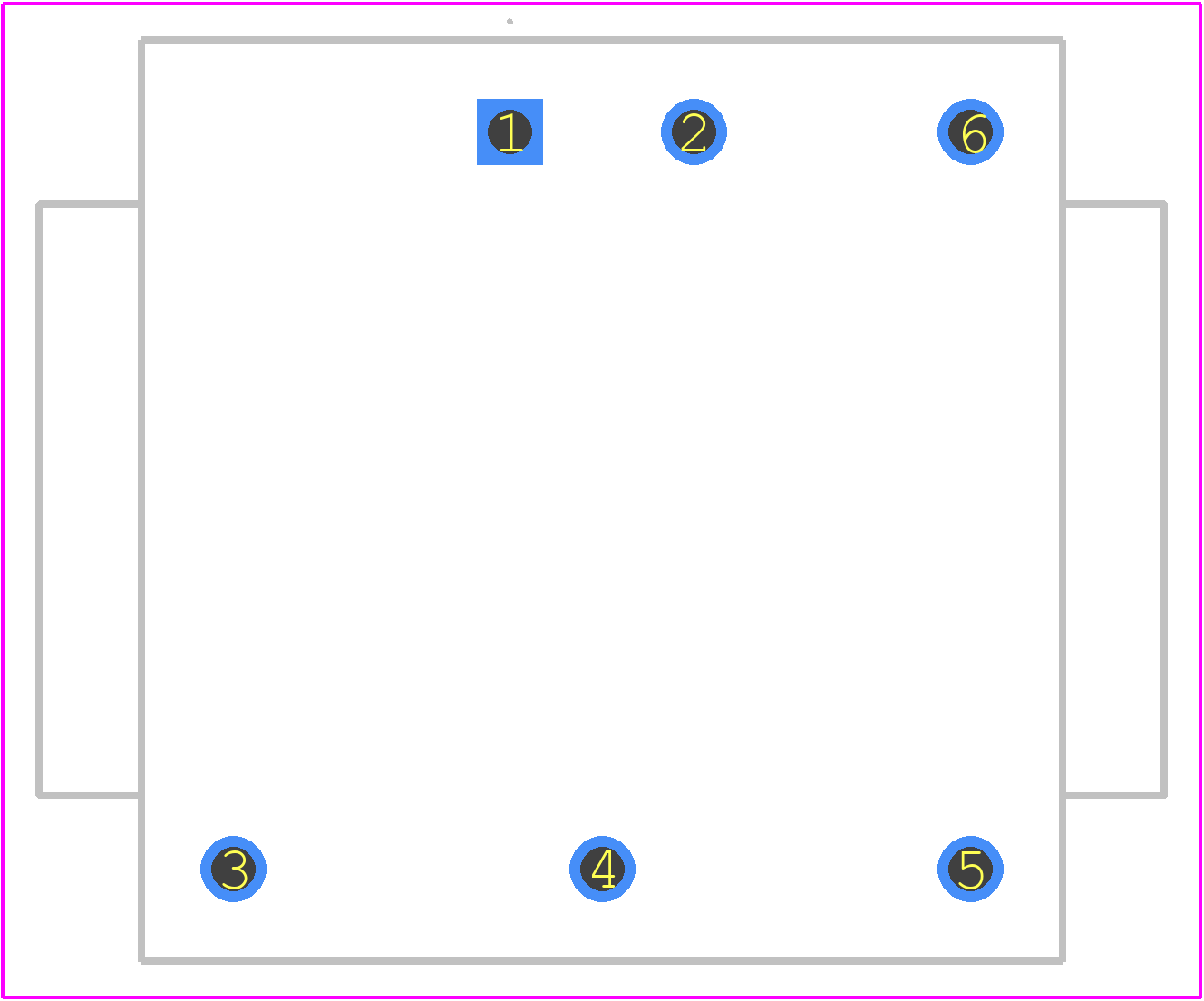

MJWI15-48S12-HS - Minmax PCB footprint - Other - Other - MJWI15-48S12-HS-2
