MJWI20-24S12 - Minmax

Description: The MJWI20 series is a new generation of high performance DC-DC converter modules setting a new standard concerning power density. The product offers fully 20W in a shielded metal package with dimensions of just 1.0"x1.0"x 0.4". All models provide ultra-wide 4:1 input voltage range and tight output voltage regulation. State-of the-art circuit topology provides a very high efficiency up to 89% which allows an operating temperature range of -40℃ to +85℃. Further features include remote On/Off, trimmable outpu

Download MJWI20-24S12 Model

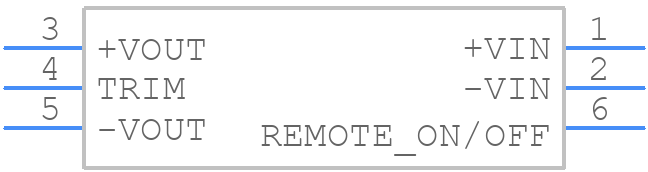

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

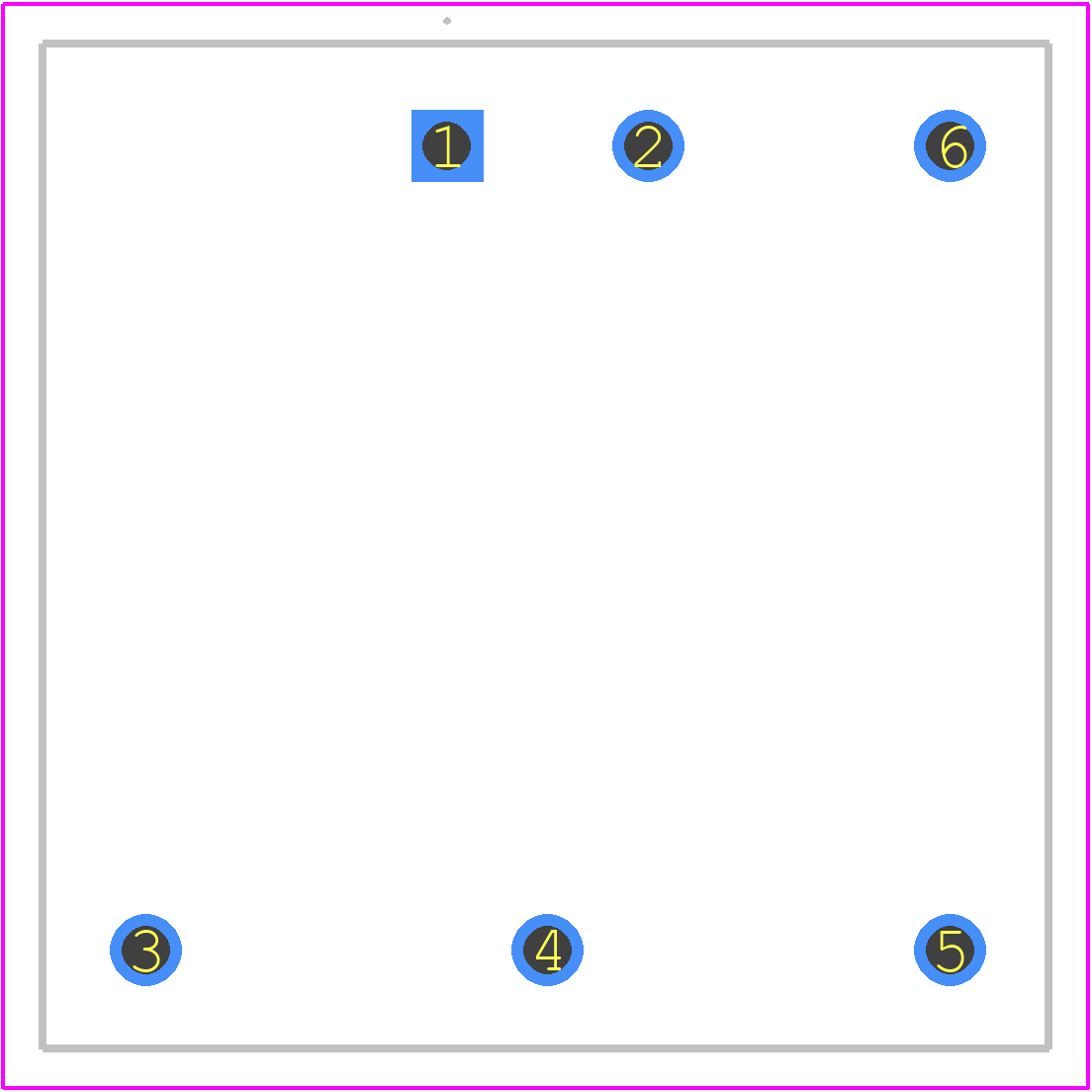

PCB Footprints
MJWI20-24S12 - Minmax PCB footprint - Other - Other - MJWI20-24S12
click to zoom
3D Models
MJWI20-24S12 - Minmax  - 3D model - Other - MJWI20-24S12
click to zoom

MJWI20-24S12 Details

  • Manufacturer Part Number:

    MJWI20-24S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    89%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.67 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Seated Height-Max:

    10.45 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    330 kHz

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.03 s

  • Width:

    25.4 mm

MJWI20-24S12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the DC-DC converter near the input capacitors and output capacitors, with a solid ground plane and minimal thermal resistance. Thermal management involves providing adequate airflow, using a heat sink if necessary, and ensuring the ambient temperature is within the specified range.
  • To ensure EMC and EMI compliance, use a shielded enclosure, keep the input and output cables as short as possible, and use EMI filters or common-mode chokes if necessary. Additionally, follow the recommended layout and grounding guidelines to minimize radiation and susceptibility.
  • The maximum allowable input voltage deviation is typically ±10% of the nominal input voltage. Exceeding this range may affect the converter's performance, efficiency, or reliability.
  • While the MJWI20-24S12 is a high-quality DC-DC converter, it may not meet the specific requirements for high-reliability or safety-critical applications. Consult with Minmax Technology Co Ltd or a qualified engineer to determine if this converter meets the necessary standards and regulations for your specific application.
  • The expected lifespan and reliability of the MJWI20-24S12 depend on various factors, including operating conditions, ambient temperature, and quality of the input power. Under normal operating conditions, the converter can last for 10-15 years or more, with a failure rate of less than 1% per 1,000 hours.
