Description:MJWI30 series 30W DC-DC converter can widely be used in industrial-grade applications like human-machine interface recorders, unmanned vehicles, semiconductor process equipment, charging piles, etc. This series of isolated DC to DC converter module offers a full 30W in a small 1"×1" package which occupies only 1.0 square inches of PCB space with a power density of up to 75W per cubic inch (W/in3). Besides, it is also an ideal choice for transportation and renewable energy equipment industries.
OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT, UNDER VOLTAGE
Ripple Voltage (Main Out):
0.0265125 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm
MJWI30-24S05 Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal performance can be found in the Minmax Technology Co Ltd application note AN-102, which provides guidelines for PCB design, component placement, and thermal management.
To ensure reliable operation in high-temperature environments, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal interface material to reduce the junction temperature of the converter.
The maximum capacitance on the output of the MJWI30-24S05 is not explicitly stated in the datasheet, but as a general rule, it is recommended to limit the output capacitance to 10-20 times the output capacitance of the converter itself (in this case, 100uF). Exceeding this limit may cause instability or oscillation.
Yes, the MJWI30-24S05 can be used in a redundant or parallel configuration, but it is recommended to consult with Minmax Technology Co Ltd or a qualified engineer to ensure that the configuration is properly designed and implemented to avoid any potential issues or instability.
The typical efficiency of the MJWI30-24S05 is around 85-90% at full load, depending on the input voltage and operating conditions. However, this value may vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJWI30-24S05 Overview

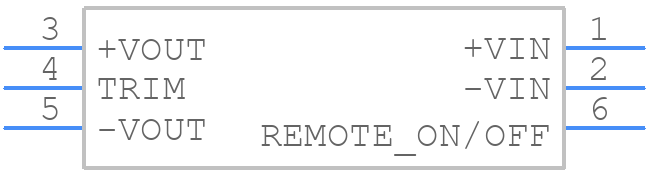

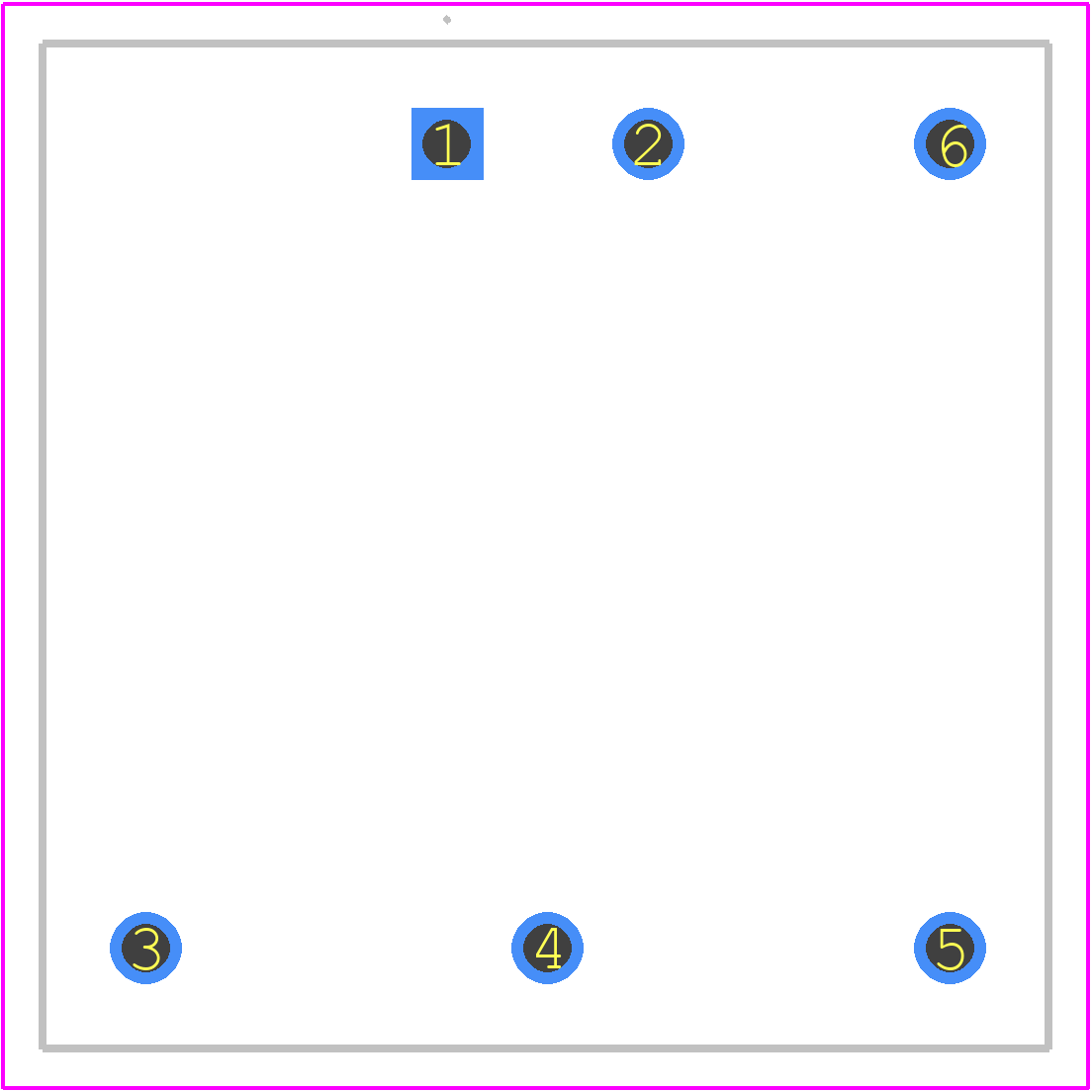

Use the download button to access the MJWI30-24S05 schematic symbol, PCB footprint, and 3D model.
