MK1575-01GILFTR - Renesas Electronics

Description: The MK1575-01 is a clock recovery Phase-Locked Loop (PLL) designed for clock synthesis and synchronization in cost sensitive applications. The device is optimized to accept a low-frequency reference clock to generate a high-frequency data or graphics pixel clock. External loop filter components allow tailoring of loop frequency response characteristics. For low jitter / phase noise requirements refer to the MK2069 products.

Download MK1575-01GILFTR Model

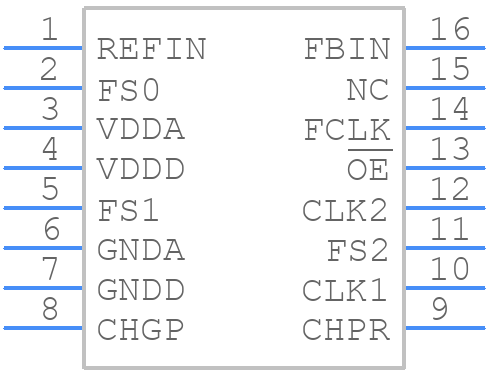

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MK1575-01GILFTR - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (16-pin TSSOP, 4.40 mm Body, 0.65 mm Pitch)
click to zoom
3D Models
MK1575-01GILFTR - Renesas Electronics  - 3D model - Small Outline Packages - (16-pin TSSOP, 4.40 mm Body, 0.65 mm Pitch)
click to zoom

MK1575-01GILFTR Details

  • Manufacturer Part Number:

    MK1575-01GILFTR

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    80 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    20 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    SPREAD SPECTRUM EMI REDUCTION CLOCK

MK1575-01GILFTR Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP6111) for the MK1575-01GILFTR, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or warning mechanisms if necessary.
  • The input capacitor (CIN) should have a minimum capacitance of 10uF and a voltage rating of at least 25V. The output capacitor (COUT) should have a minimum capacitance of 22uF and a voltage rating of at least 10V. Both capacitors should have a low ESR (Equivalent Series Resistance) to ensure stable operation.
  • To troubleshoot common issues like output voltage instability or oscillation, check the PCB layout for any signs of noise coupling, ensure that the input and output capacitors meet the recommended specifications, and verify that the feedback loop is properly connected. Also, check for any signs of overheating, and ensure that the device is operated within the recommended operating conditions.
  • Using a different inductor value or type than recommended can affect the performance and stability of the MK1575-01GILFTR. It's essential to follow the recommended inductor specifications to ensure optimal performance, efficiency, and reliability. If a different inductor is used, it's crucial to re-evaluate the design and ensure that it meets the required specifications.
