MK1714-01RLFTR - Renesas Electronics

Description: The MK1714-02 is a low cost, high performance clock synthesizer with selectable multipliers and percentages of spread designed to generate high frequency clocks with low EMI. Using analog/digital Phase Locked Loop (PLL) techniques, the device accepts an inexpensive, fundamental mode, parallel resonant crystal or clock input to produce a spread or dithered output. This reduces the EMI amplitude peaks at the odd harmonics by several dB. The OE pin puts both outputs into a high impedance state for board level

Download MK1714-01RLFTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

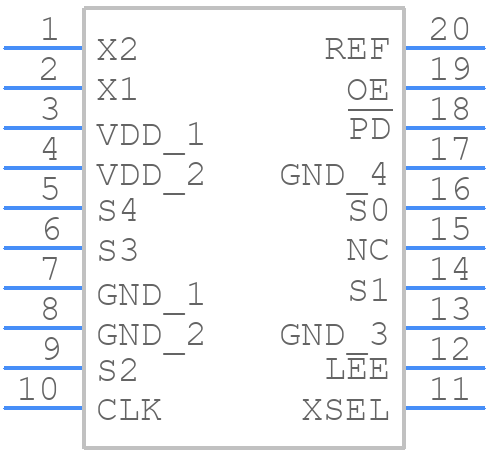

Symbol
MK1714-01RLFTR - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
MK1714-01RLFTR - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (20-pin SSOP, 150 Mil. Body)_
click to zoom
3D Models
MK1714-01RLFTR - Renesas Electronics - 3D model - Small Outline Packages - (20-pin SSOP, 150 Mil. Body)_
click to zoom

MK1714-01RLFTR Details

  • Manufacturer Part Number:

    MK1714-01RLFTR

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    150 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

MK1714-01RLFTR Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1844) for the MK1714-01RLFTR, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The MK1714-01RLFTR has an internal overcurrent protection (OCP) feature, but it's recommended to implement an external OCP circuit to ensure reliable operation. Renesas provides a reference design for OCP in their application note (AN1845).
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 4.7uF to 10uF for the input capacitor (CIN). The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • Renesas provides guidelines for EMC compliance in their application note (AN1846), which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI).
  • The MK1714-01RLFTR has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
