MK20DX128VLF5 - NXP

Description: MCU, Kinetis, MK20DX128VLF5, LQFP48 Freescale MK20DX128VLF5, 32bit ARM Cortex M4 MCU, 50MHz, 160 kB Flash, 48-Pin LQFP

Download MK20DX128VLF5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

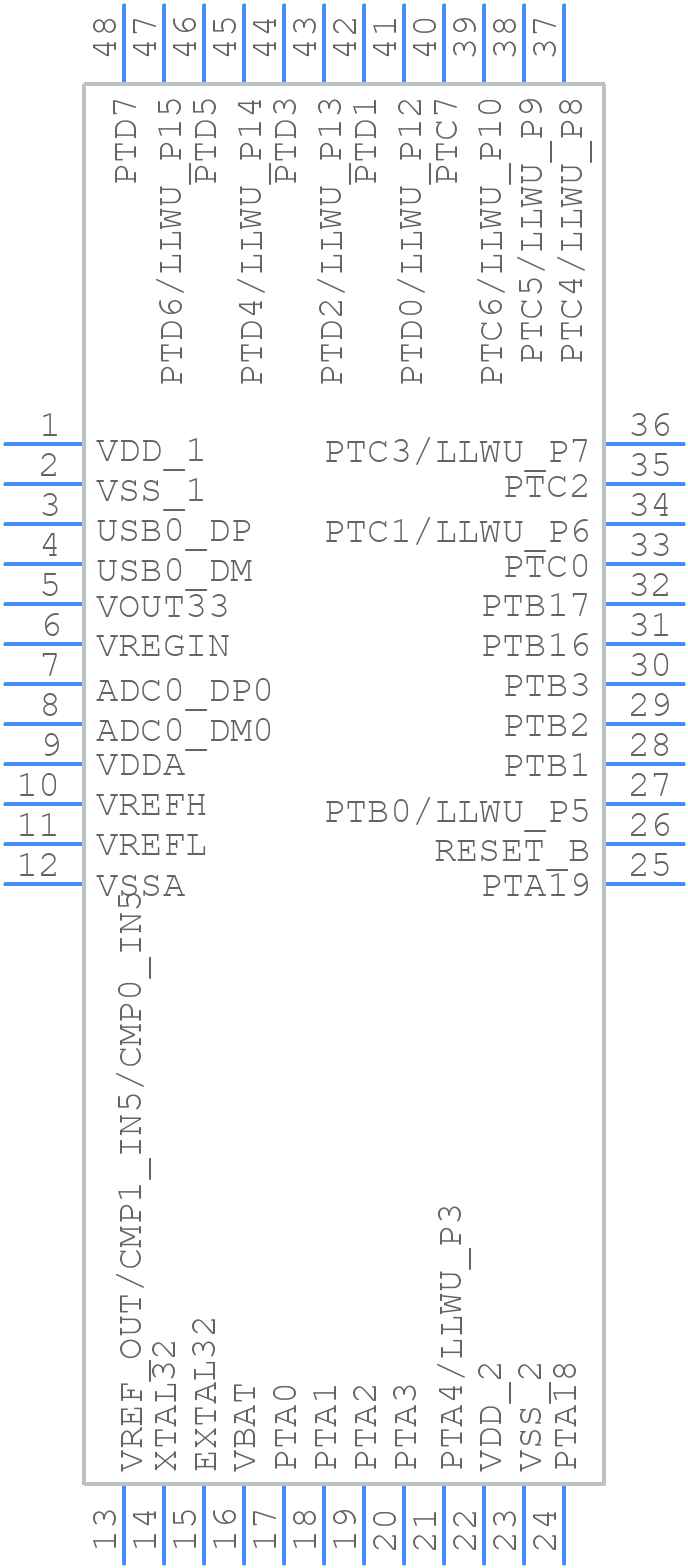

MK20DX128VLF5 - NXP - PCB symbol
click to zoom
PCB Footprints
MK20DX128VLF5 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 98ASH00962A
click to zoom
3D Models
MK20DX128VLF5 - NXP - 3D model - Quad Flat Packages - 98ASH00962A
click to zoom

MK20DX128VLF5 Details

  • Manufacturer Part Number:

    MK20DX128VLF5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, LQFP-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M4

  • Clock Frequency-Max:

    50 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    29

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    16384

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    50 MHz

  • Supply Current-Max:

    18.2 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MK20DX128VLF5 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MK20DX128VLF5 is 50 MHz.
  • The clock source for the MK20DX128VLF5 can be configured using the MCG (Multipurpose Clock Generator) module. The MCG allows the user to select between various clock sources, including the internal clock, external crystal oscillator, and external clock source.
  • The MK20DX128VLF5 has several reset pins, including the RESET_b pin, which is an active-low reset input that can be used to reset the device. The VLLS (Voltage Regulator Low-Voltage Sense) pin is used to detect when the voltage supply has dropped below a certain threshold, and the POR (Power-On Reset) pin is used to reset the device during power-up.
  • The DMA controller on the MK20DX128VLF5 allows for efficient data transfer between peripherals and memory. To use the DMA controller, the user must configure the DMA channel, set up the transfer parameters, and enable the DMA transfer. The DMA controller can be used to transfer data between peripherals, such as the UART and SPI interfaces.
  • The MK20DX128VLF5 has several low-power modes, including the WAIT mode, STOP mode, and VLPS (Very Low Power Stop) mode. These modes allow the device to reduce power consumption when it is not actively processing data. The WAIT mode reduces power consumption by stopping the CPU clock, while the STOP mode reduces power consumption by stopping the CPU clock and disabling the voltage regulator. The VLPS mode reduces power consumption by stopping the CPU clock, disabling the voltage regulator, and reducing the voltage supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MK20DX128VLF5 Overview

Use the download button to access the MK20DX128VLF5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MK20D, or try a keyword search, such as Microcontrollers
