MK22FN512VFX12R - NXP

Description: MCU 32-bit ARM Cortex M4 RISC 512KB Flash 2.5V/3.3V 88-Pin T/R

Download MK22FN512VFX12R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MK22FN512VFX12R - NXP - PCB symbol
click to zoom
PCB Footprints

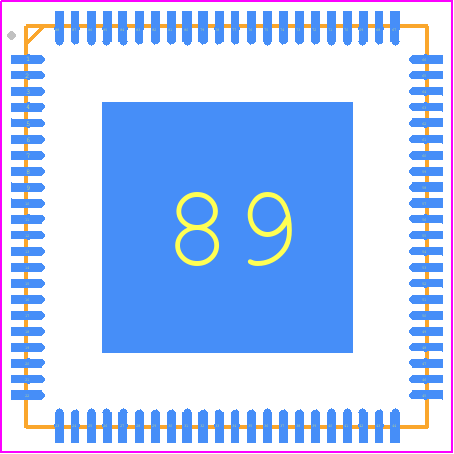

MK22FN512VFX12R - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-88
click to zoom
3D Models
MK22FN512VFX12R - NXP - 3D model - Quad Flat No-Lead - QFN-88
click to zoom

MK22FN512VFX12R Details

  • Manufacturer Part Number:

    MK22FN512VFX12R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MK22FN512VFX12R Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the MK22FN512VFX12R is 120 MHz.
  • The MK22FN512VFX12R has 512 KB of flash memory.
  • The operating voltage range of the MK22FN512VFX12R is 1.71V to 3.6V.
  • Yes, the MK22FN512VFX12R has a built-in USB 2.0 full-speed device interface.
  • The maximum current consumption of the MK22FN512VFX12R is approximately 350 mA at 120 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MK22FN512VFX12R Overview

Use the download button to access the MK22FN512VFX12R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MK22F, or try a keyword search, such as Microcontrollers
