MK2716SLF - Renesas Electronics

Description: The MK2716 is a low-cost, low jitter, high-performance PLL clock synthesizer designed to produce the 74.176 MHz and 74.25 MHz clocks necessary for HDTV systems. Using IDT's patented analog Phase-Locked Loop (PLL) techniques, the device accepts a 27 MHz crystal or clock input. The zero ppm synthesis error exactly locks the display to the digital stream. IDT manufactures the largest variety multimedia clock synthesizers for all applications. Consult IDT to eliminate crystals and oscillators from your board. F

Download MK2716SLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

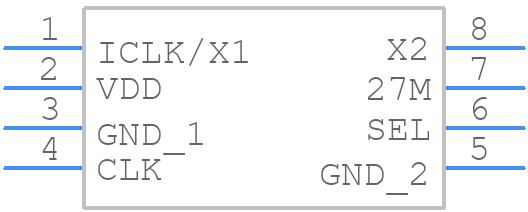

Symbol
MK2716SLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
MK2716SLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC
click to zoom
3D Models
MK2716SLF - Renesas Electronics - 3D model - Small Outline Packages - 8-pin SOIC
click to zoom

MK2716SLF Details

  • Manufacturer Part Number:

    MK2716SLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    74.25 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    27 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

MK2716SLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The MK2716SLF has a thermal pad on the bottom of the package, which requires a thermal connection to a heat sink or a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material and a heat sink with a sufficient thermal rating.
  • Although the datasheet specifies a maximum VCC voltage of 3.6V, Renesas recommends limiting the voltage to 3.3V during power-up and power-down sequences to prevent damage to the internal voltage regulator.
  • Use an external reset circuit to ensure a clean reset signal during power-on and power-off cycles. The reset signal should be asserted for at least 10ms to ensure the internal registers are properly reset.
  • Renesas recommends using a high-quality, low-jitter clock source, such as a crystal oscillator or a clock generator, to ensure reliable operation and minimize errors. Avoid using the internal clock generator if possible.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MK2716SLF Overview

Use the download button to access the MK2716SLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MK271, or try a keyword search, such as Clock Generators
