MKP1847615354Y4 - Vishay

Description: Film Capacitors 15uF 350volt 5% 4pin 52.5x10.2mm LS

Download MKP1847615354Y4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1847615354Y4 - Vishay - PCB symbol
click to zoom
PCB Footprints

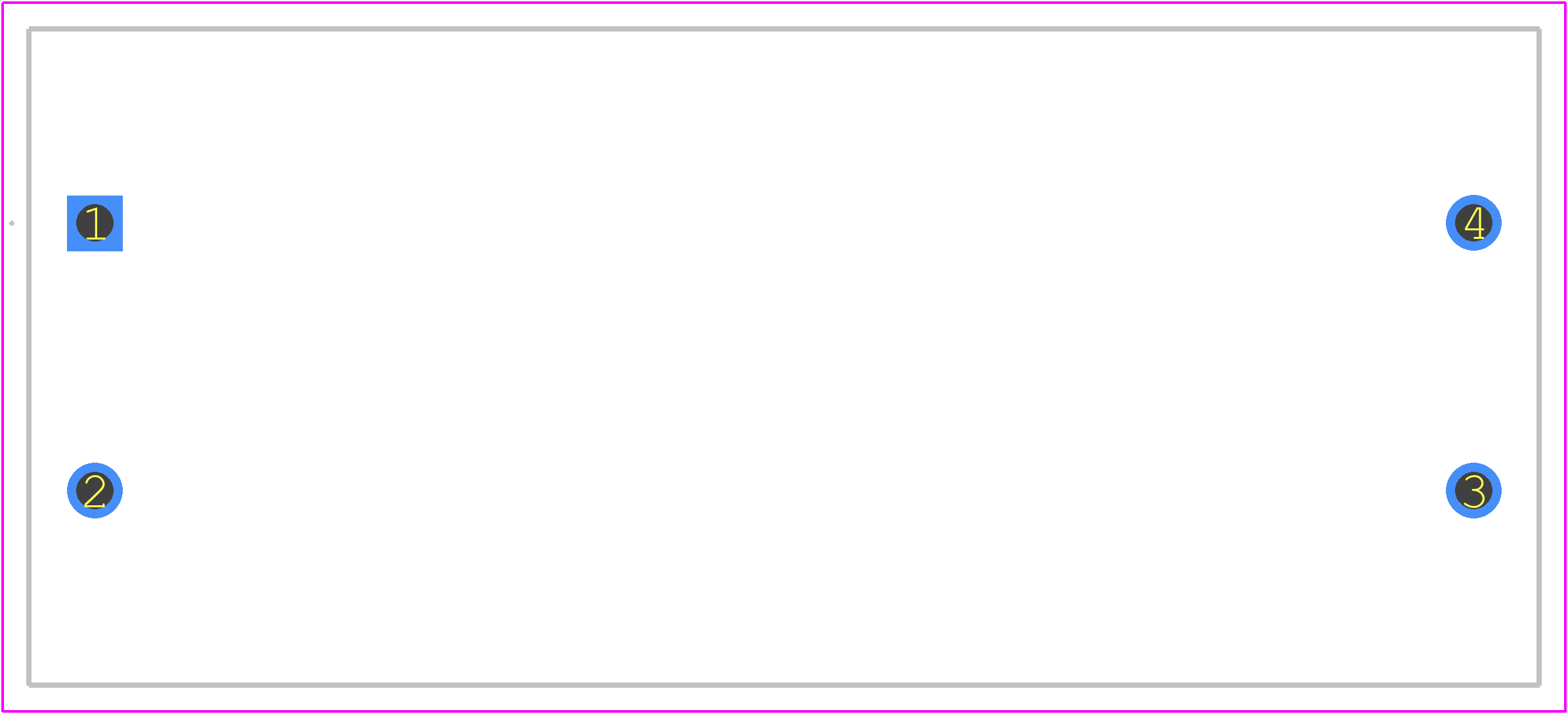

MKP1847615354Y4 - Vishay PCB footprint - Other - Other - MKP1847615354Y4-1
click to zoom
3D Models
MKP1847615354Y4 - Vishay - 3D model - Other - MKP1847615354Y4-1
click to zoom

MKP1847615354Y4 Details

  • Manufacturer Part Number:

    MKP1847615354Y4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    3

  • Capacitance:

    15 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    350 V

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    IEC61071, IEC60068

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    25 mm

MKP1847615354Y4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1847615354Y4 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1847615354Y4 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The MSL of MKP1847615354Y4 is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
  • While the MKP1847615354Y4 capacitor is designed to withstand normal vibration, it's not specifically designed for high-vibration applications. For such applications, it's recommended to consult with Vishay's application engineers or consider using a capacitor with a more robust design.
  • The ESR of MKP1847615354Y4 is not explicitly stated in the datasheet, but it's typically in the range of 10-50 mΩ for MKP1847 series capacitors. For more accurate information, consult with Vishay's application engineers or refer to the capacitor's impedance vs. frequency curve.
