MKP1847620354Y5 - Vishay

Description: 20 µF Film Capacitor 350V 700V Polypropylene (PP), Metallized Radial - 4 Leads

Download MKP1847620354Y5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1847620354Y5 - Vishay - PCB symbol
click to zoom
PCB Footprints

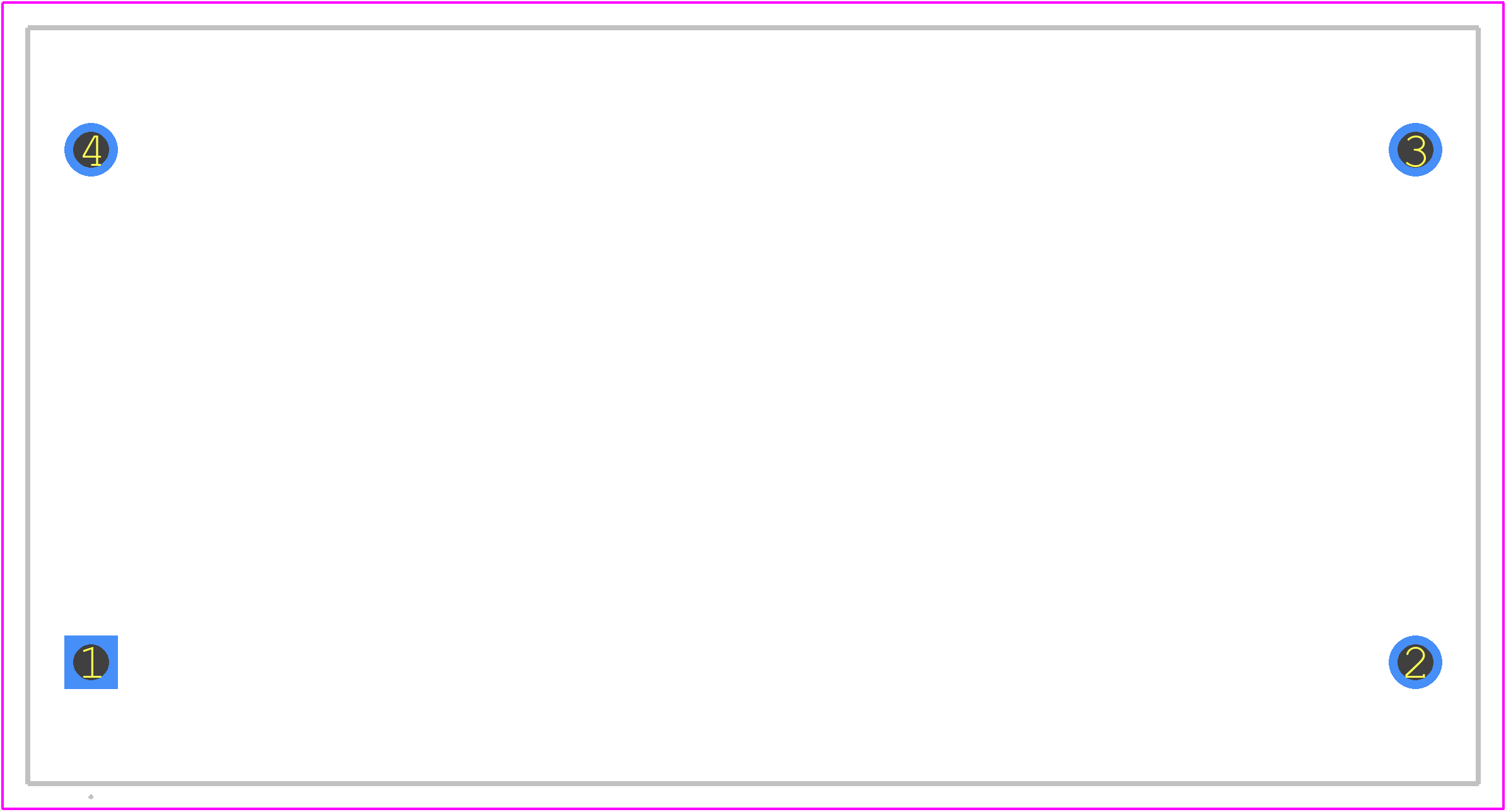

MKP1847620354Y5 - Vishay PCB footprint - Other - Other - 57.50mm x 30.00mm_2024-1
click to zoom
3D Models
MKP1847620354Y5 - Vishay - 3D model - Other - 57.50mm x 30.00mm_2024-1
click to zoom

MKP1847620354Y5 Details

  • Manufacturer Part Number:

    MKP1847620354Y5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    3

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    350 V

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    IEC61071, IEC60068

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

MKP1847620354Y5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the MKP1847620354Y5 is 260°C for 10 seconds, with a peak temperature of 265°C.
  • Yes, the MKP1847620354Y5 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The MKP1847620354Y5 has a rated voltage of 250VDC, but it's not recommended to use it in applications exceeding 200VDC to ensure a safe margin. For higher voltage applications, consider using a capacitor with a higher voltage rating.
  • The MKP1847620354Y5's capacitance value and dissipation factor (DF) will change with temperature. Consult the datasheet for specific temperature coefficients and DF values.
  • Yes, the MKP1847620354Y5 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
