MKP1848610914P4 - Vishay

Description: 10 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads

Download MKP1848610914P4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848610914P4 - Vishay - PCB symbol
click to zoom
PCB Footprints

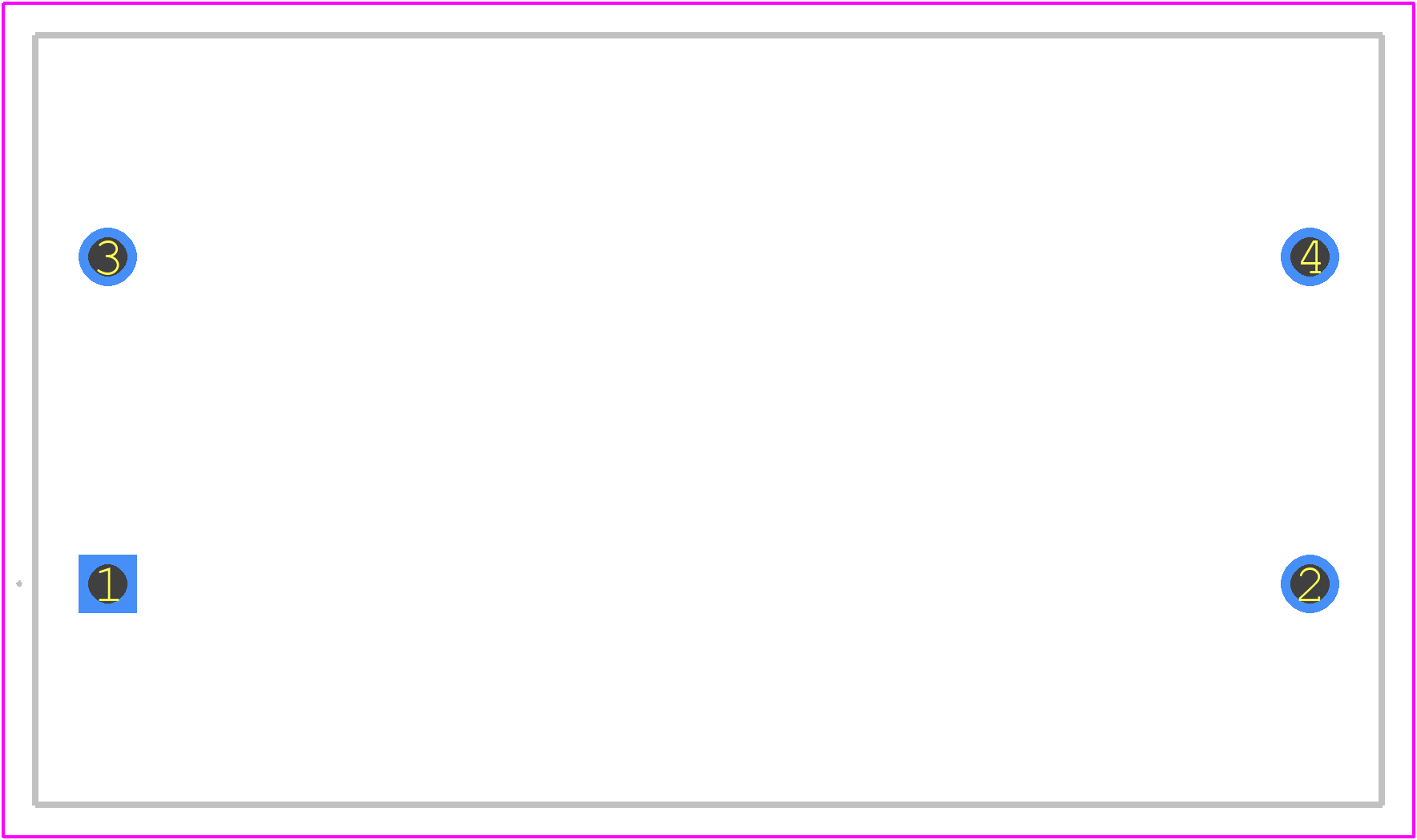

MKP1848610914P4 - Vishay PCB footprint - Other - Other - 42.0xmmx24.0mmx44.0mm
click to zoom
3D Models
MKP1848610914P4 - Vishay - 3D model - Other - 42.0xmmx24.0mmx44.0mm
click to zoom

MKP1848610914P4 Details

  • Manufacturer Part Number:

    MKP1848610914P4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.87

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    8 mΩ

  • Height:

    44 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1100 V

  • Reference Standard:

    AEC-Q200; IEC61071; IEC60068

  • Ripple Current:

    11000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    24 mm

MKP1848610914P4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848610914P4 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the MKP1848610914P4 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications up to 100 kHz due to its low equivalent series resistance (ESR) and high self-resonance frequency.
  • While the MKP1848610914P4 has a moisture sensitivity level (MSL) of 2, it's still recommended to use it in a controlled humidity environment (RH < 60%) to prevent moisture ingress and ensure reliability.
  • The maximum voltage derating for the MKP1848610914P4 is 1.25 times the rated voltage, which means that if the capacitor is rated for 400V, the maximum voltage derating would be 500V.
  • Yes, the MKP1848610914P4 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other regions with similar regulations.
