MKP1848622454P4 - Vishay

Description: Film Capacitors 22uF 450volt 5% 4pin 37.5x10.2mm LS

Download MKP1848622454P4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848622454P4 - Vishay - PCB symbol
click to zoom
PCB Footprints

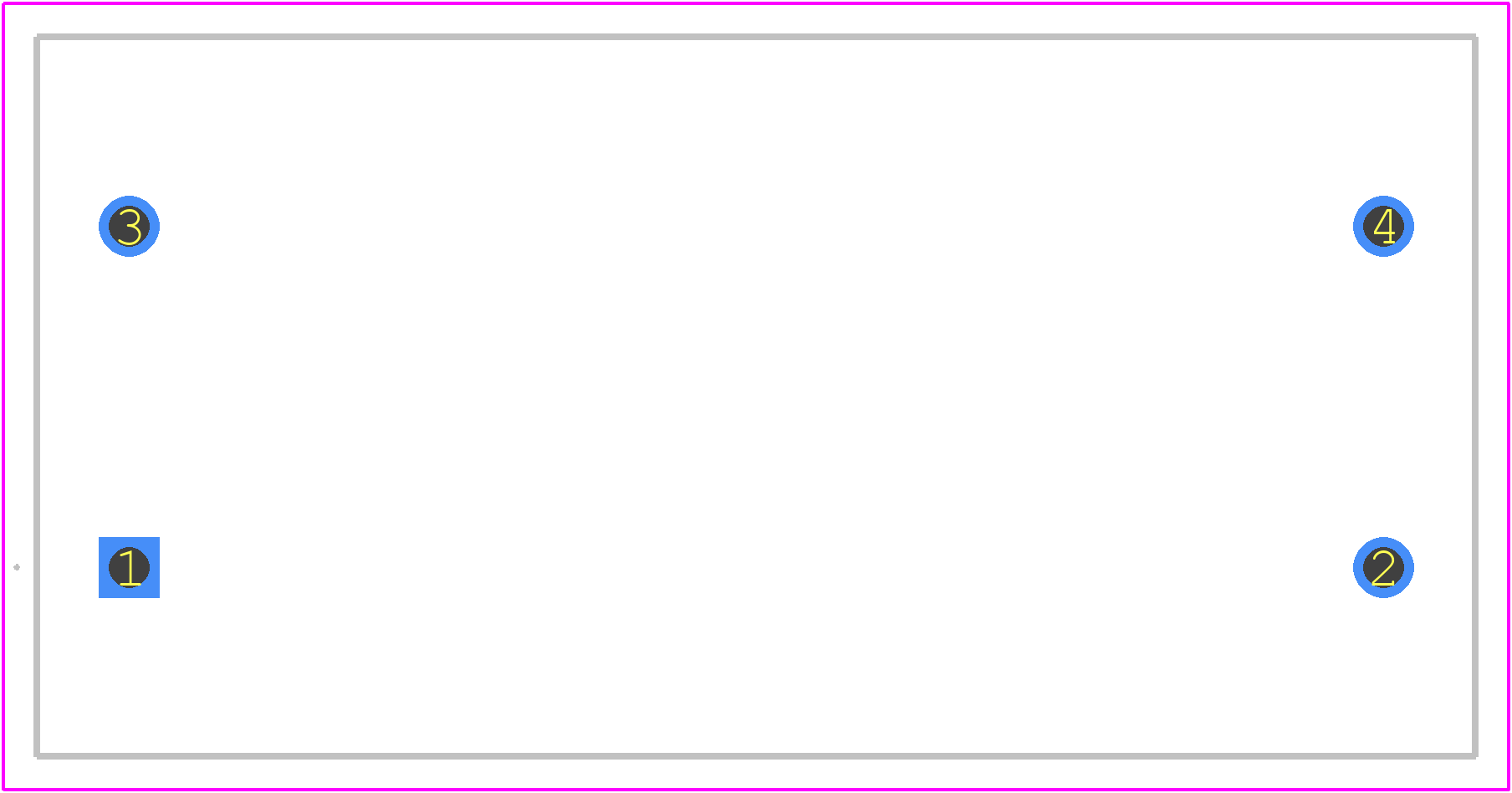

MKP1848622454P4 - Vishay PCB footprint - Other - Other - 43.0x21.5x38.5mm
click to zoom
3D Models
MKP1848622454P4 - Vishay - 3D model - Other - 43.0x21.5x38.5mm
click to zoom

MKP1848622454P4 Details

  • Manufacturer Part Number:

    MKP1848622454P4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Capacitance:

    22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    6.5 mΩ

  • Height:

    38.5 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    450 V

  • Reference Standard:

    AEC-Q200; IEC61071; IEC60068

  • Ripple Current:

    11500 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    21.5 mm

MKP1848622454P4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848622454P4 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the MKP1848622454P4 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The maximum operating temperature range for MKP1848622454P4 is -40°C to +125°C, with a derating of capacitance and insulation resistance above 85°C.
  • Yes, the MKP1848622454P4 capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10 Hz to 2000 Hz, 1.5 mm amplitude, and 3 axes.
  • The equivalent series resistance (ESR) of the MKP1848622454P4 capacitor is approximately 10 mΩ at 100 kHz and 20°C.
