MKP1848625454P4 - Vishay

Description: 25 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads

Download MKP1848625454P4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848625454P4 - Vishay - PCB symbol
click to zoom

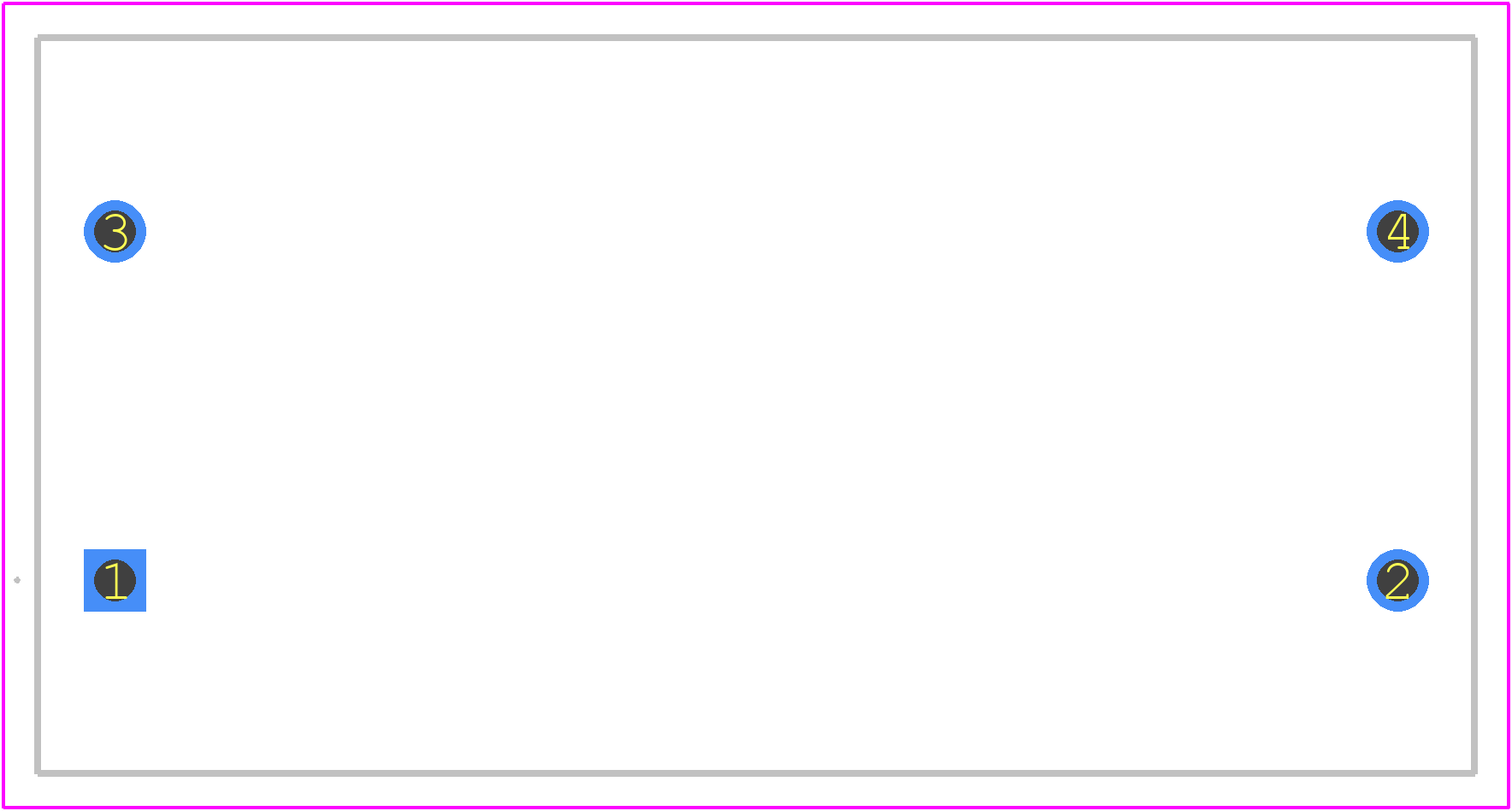

PCB Footprints
MKP1848625454P4 - Vishay PCB footprint - Other - Other - 42mm x 21.5mm x 38.5mm_2025
click to zoom
3D Models
MKP1848625454P4 - Vishay - 3D model - Other - 42mm x 21.5mm x 38.5mm_2025
click to zoom

MKP1848625454P4 Details

  • Manufacturer Part Number:

    MKP1848625454P4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Capacitance:

    25 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    5.5 mΩ

  • Height:

    38.5 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    450 V

  • Reference Standard:

    AEC-Q200; IEC61071; IEC60068

  • Ripple Current:

    12500 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

  • Width:

    21.5 mm

MKP1848625454P4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848625454P4 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848625454P4 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The MSL of MKP1848625454P4 is MSL 2, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity without requiring baking before soldering.
  • While the MKP1848625454P4 capacitor is designed to withstand some vibration, it's essential to consult Vishay's vibration testing data and perform your own testing to ensure the capacitor meets your specific application's requirements.
  • The MKP1848625454P4 capacitor has a maximum operating temperature of 125°C (257°F). While it can tolerate high temperatures, it's crucial to consider the derating curves and temperature coefficients to ensure the capacitor's performance and reliability in your specific application.
