MKP1848630924Y5 footprint, schematic symbol and 3D model by Vishay

Symbol

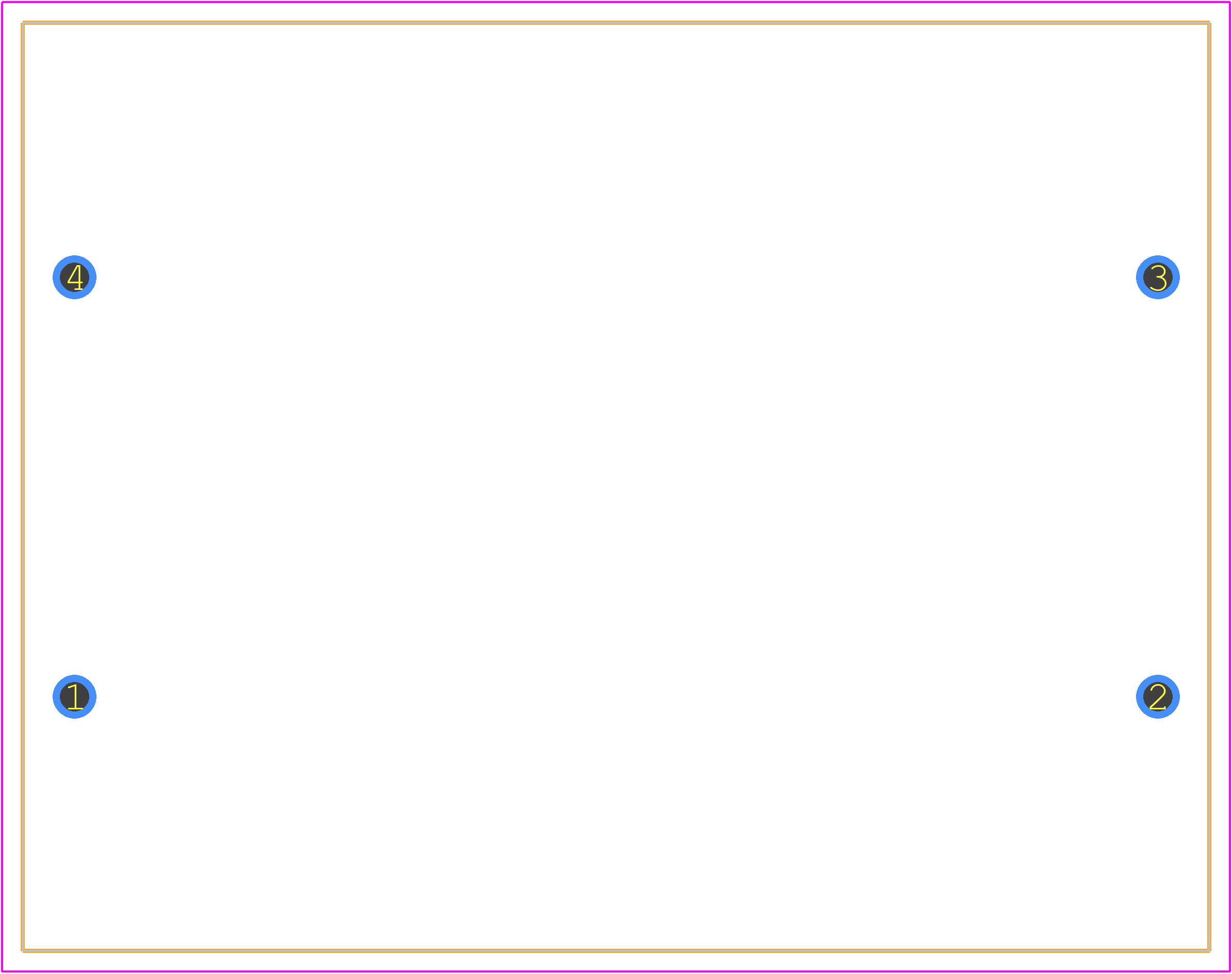

PCB Footprints

3D Models

MKP1848630924Y5 Details

The recommended soldering temperature for MKP1848630924Y5 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
Yes, the MKP1848630924Y5 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonance frequency.
The derating curve for the MKP1848630924Y5 capacitor can be found in the Vishay Intertechnologies datasheet, which provides a graph showing the percentage of rated voltage versus ambient temperature. Engineers can use this curve to determine the maximum allowed voltage at a given temperature.
Yes, the MKP1848630924Y5 capacitor is suitable for use in DC-DC converters due to its low ESR, high ripple current capability, and high reliability. However, engineers should ensure that the capacitor is properly sized and derated for the specific application.
The shelf life of the MKP1848630924Y5 capacitor is typically 2 years from the date of manufacture, as long as it is stored in its original packaging and under recommended storage conditions (e.g., 20°C to 30°C, 60% to 90% relative humidity).

Expert Contribution

System Verified

Community Approved

Use the download button to access the MKP1848630924Y5 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MKP18, or try a keyword search, such as Film Capacitors
