MKP1848640094Y5 - Vishay

Description: Cap Film 40uF 900V PP 5% (57.5 X 35 X 50mm) Wound 52.5mm 0.005 Ohm 105°C Automotive Bulk

Download MKP1848640094Y5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848640094Y5 - Vishay - PCB symbol
click to zoom
PCB Footprints

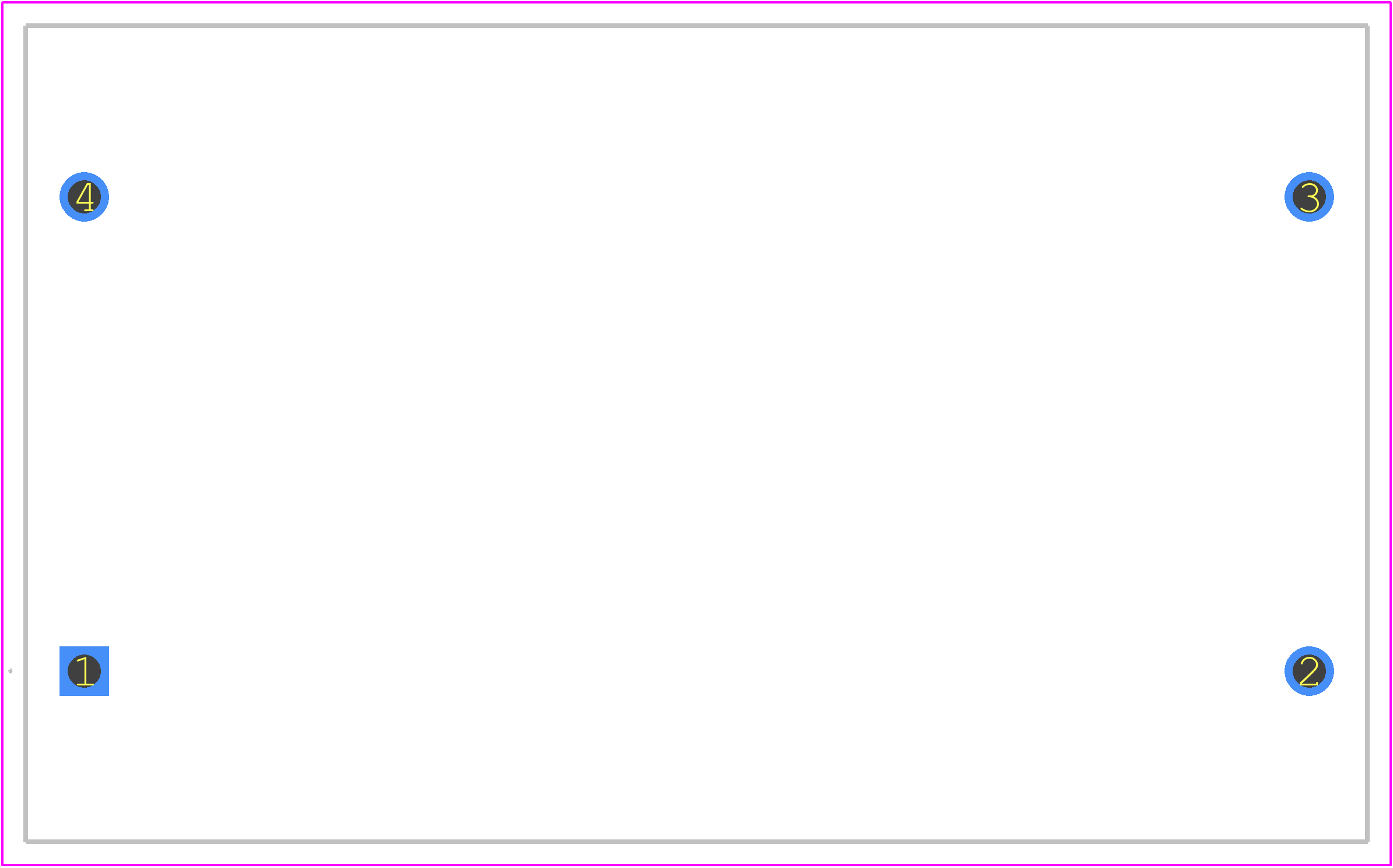

MKP1848640094Y5 - Vishay PCB footprint - Other - Other - MKP1848640094Y5-1
click to zoom
3D Models
MKP1848640094Y5 - Vishay - 3D model - Other - MKP1848640094Y5-1
click to zoom

MKP1848640094Y5 Details

  • Manufacturer Part Number:

    MKP1848640094Y5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    40 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    5 mΩ

  • Height:

    50 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    900 V

  • Reference Standard:

    AEC-Q200; IEC61071; IEC60068

  • Ripple Current:

    17000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

MKP1848640094Y5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848640094Y5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848640094Y5 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The MSL of the MKP1848640094Y5 is MSL 2, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity without requiring baking before soldering.
  • While the MKP1848640094Y5 is a reliable capacitor, it's not specifically designed for high-vibration applications. For such applications, it's recommended to use capacitors with specialized vibration-resistant designs, such as those with flexible terminations or specialized mounting systems.
  • The MKP1848640094Y5 is designed to handle surge currents up to 10 times the rated current for a maximum of 10 seconds. However, it's essential to ensure that the capacitor is properly sized and derated for the specific application to avoid overheating or damage.
