MKP1848680704Y5 - Vishay

Description: 80 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads

Download MKP1848680704Y5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848680704Y5 - Vishay - PCB symbol
click to zoom
PCB Footprints

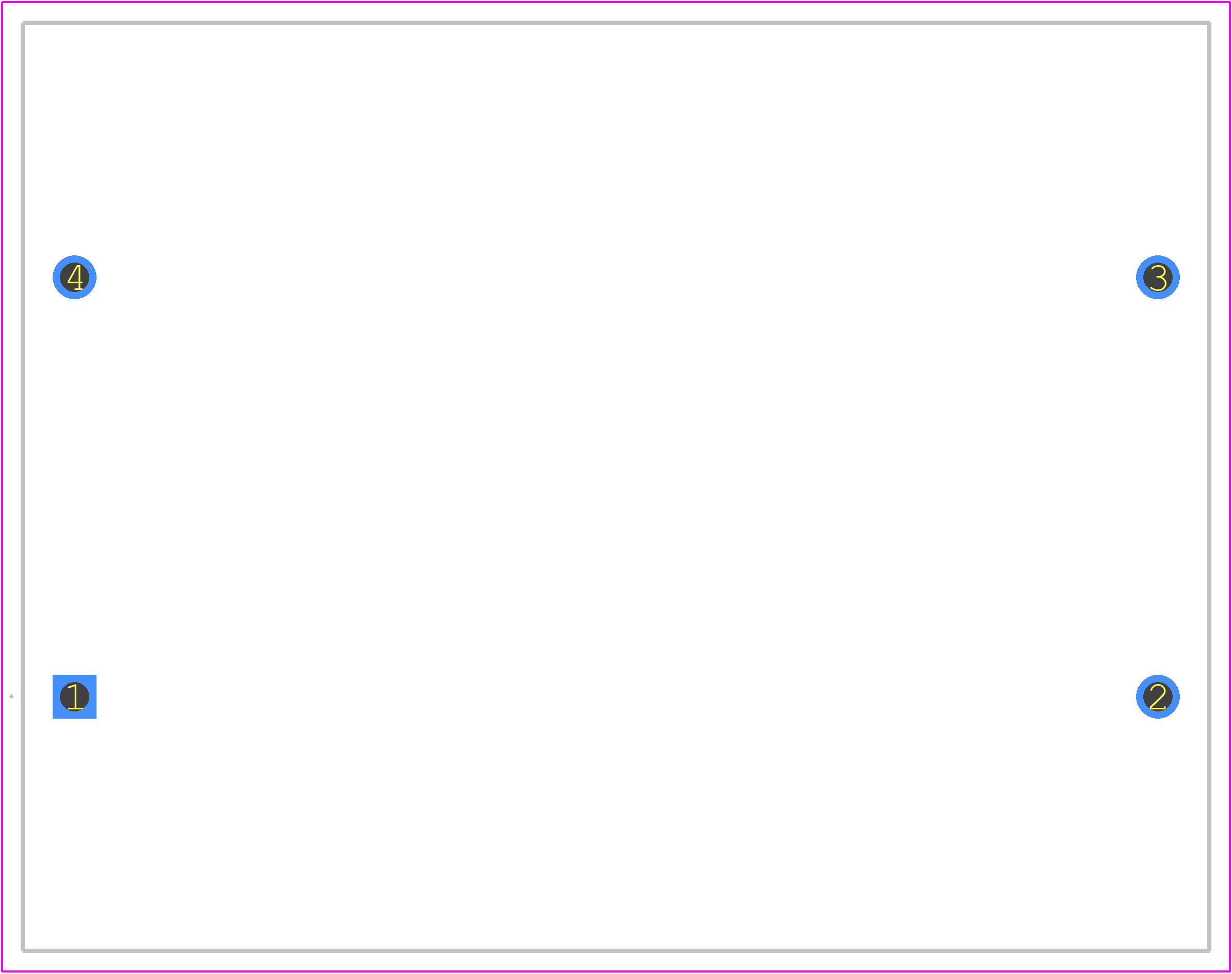

MKP1848680704Y5 - Vishay PCB footprint - Other - Other - MKP1848680704Y5-1
click to zoom
3D Models
MKP1848680704Y5 - Vishay - 3D model - Other - MKP1848680704Y5-1
click to zoom

MKP1848680704Y5 Details

  • Manufacturer Part Number:

    MKP1848680704Y5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    80 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    3 mΩ

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    AEC-Q200; IEC61071; IEC60068

  • Ripple Current:

    21500 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

MKP1848680704Y5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848680704Y5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848680704Y5 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the MKP1848680704Y5 capacitor is suitable for use in DC-DC converters due to its low ESR, high ripple current capability, and high reliability.
  • Yes, the MKP1848680704Y5 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The shelf life of the MKP1848680704Y5 capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under normal storage conditions.
