MKP1848716704Y5 - Vishay

Description: Film Capacitors 160uF 700volt 5% 4pin 52.5x20.3mm LS

Download MKP1848716704Y5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848716704Y5 - Vishay - PCB symbol
click to zoom
PCB Footprints

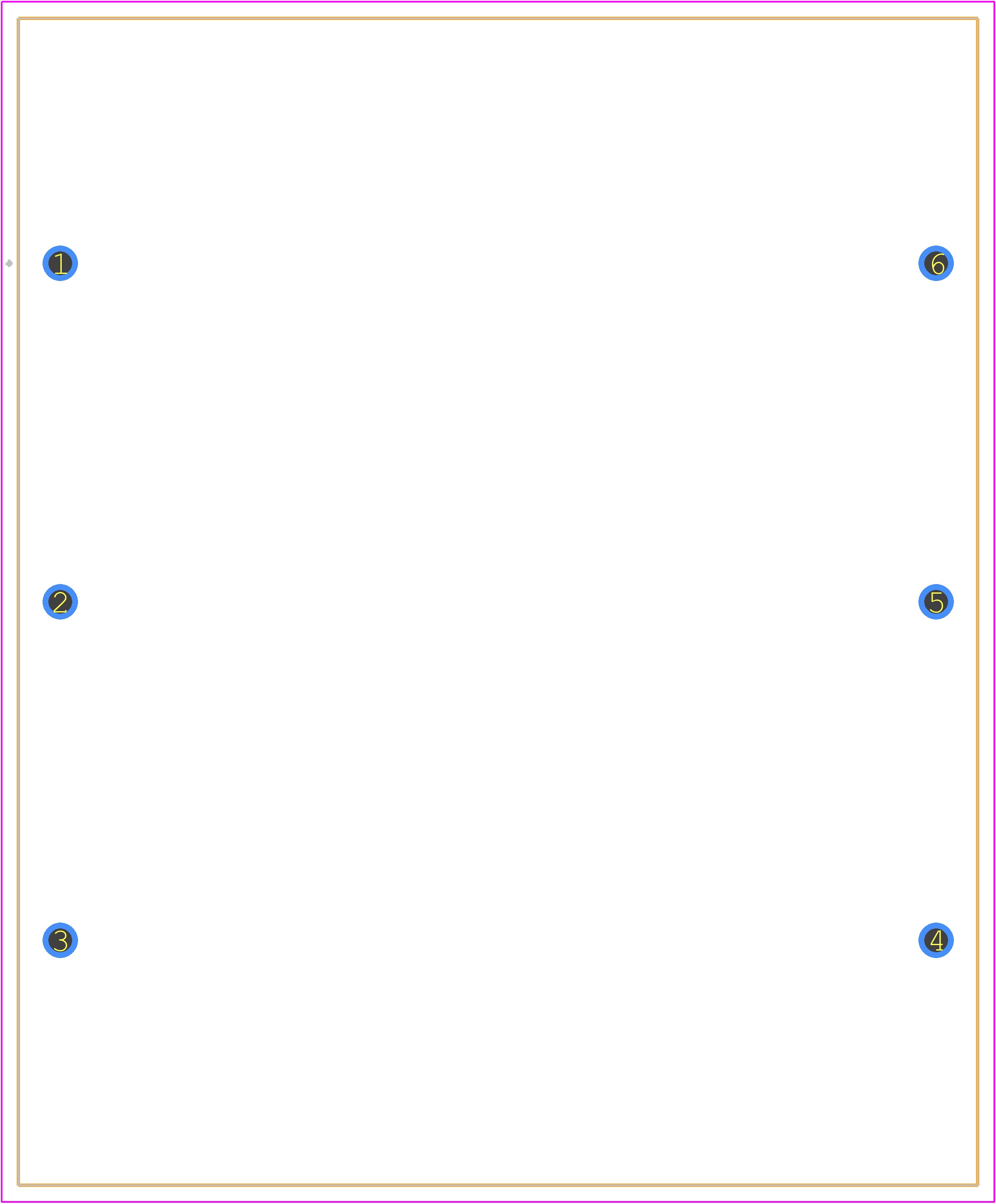

MKP1848716704Y5 - Vishay PCB footprint - Other - Other - MKP1848716704Y5
click to zoom
3D Models
MKP1848716704Y5 - Vishay - 3D model - Other - MKP1848716704Y5
click to zoom

MKP1848716704Y5 Details

  • Manufacturer Part Number:

    MKP1848716704Y5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    160 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    2.5 mΩ

  • Height:

    65 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    AEC-Q200; IEC61071; IEC60068

  • Ripple Current:

    30500 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    65.5 mm

MKP1848716704Y5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848716704Y5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848716704Y5 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The MSL of the MKP1848716704Y5 is MSL 2, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity without requiring baking before soldering.
  • While the MKP1848716704Y5 is a reliable capacitor, it's not specifically designed for high-vibration applications. For such applications, it's recommended to use capacitors with specialized vibration-resistant designs or to consult with a Vishay application engineer for guidance.
  • The ESR of the MKP1848716704Y5 is not explicitly stated in the datasheet, but it's typically in the range of 10-50 mΩ for MKP1848 series capacitors. For more accurate information, consult with a Vishay application engineer or refer to the capacitor's impedance vs. frequency curve.
