MKP1848C61010JP4 - Vishay

Description: Film Capacitors MKP , 10 uF , 5% , 1000Vdc, pitch 37,5 , 4 pins

Download MKP1848C61010JP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C61010JP4 - Vishay - PCB symbol
click to zoom
PCB Footprints

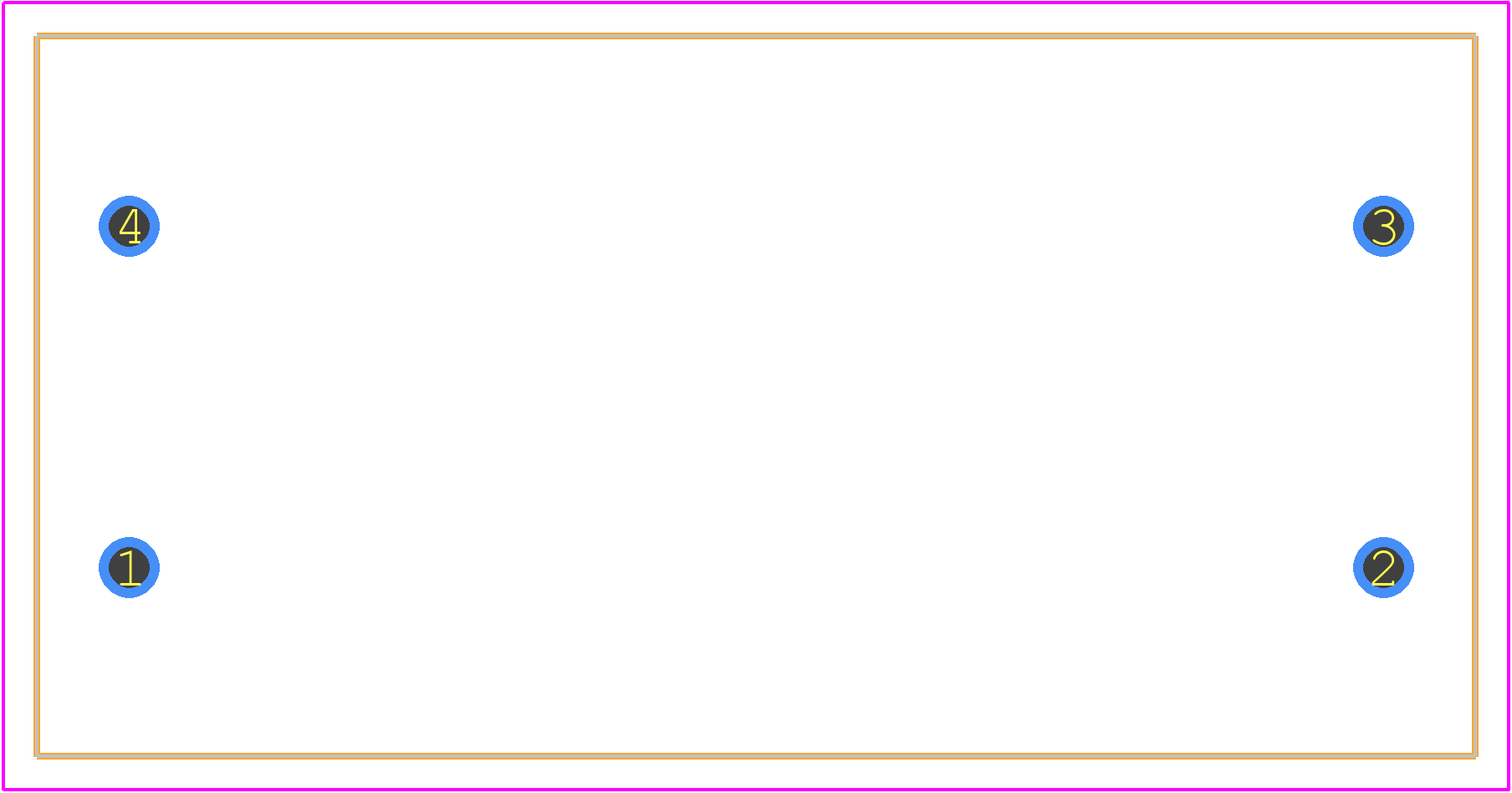

MKP1848C61010JP4 - Vishay PCB footprint - Other - Other - MKP1848 (21.5x38.5x43)
click to zoom
3D Models
MKP1848C61010JP4 - Vishay - 3D model - Other - MKP1848 (21.5x38.5x43)
click to zoom

MKP1848C61010JP4 Details

  • Manufacturer Part Number:

    MKP1848C61010JP4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    11 mΩ

  • Height:

    38.5 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    9000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    21.5 mm

MKP1848C61010JP4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C61010JP4 is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
  • Yes, the MKP1848C61010JP4 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The derating curve for the MKP1848C61010JP4 capacitor can be found in the Vishay Intertechnologies application note AN1031, which provides guidance on derating the capacitor's voltage and current ratings based on operating temperature and other factors.
  • Yes, the MKP1848C61010JP4 capacitor is designed to withstand high-vibration environments, with a vibration test rating of 10 Hz to 2000 Hz, 10 G peak acceleration, and 3 hours per axis.
  • The ESR of the MKP1848C61010JP4 capacitor is approximately 10 mohms at 100 kHz and 25°C (77°F).
