MKP1848C61012JP4 - Vishay

Description: Vishay 10μF Polypropylene Capacitor PP 1.2kV dc ±5% Tolerance Through Hole MKP1848C Series

Download MKP1848C61012JP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C61012JP4 - Vishay - PCB symbol
click to zoom

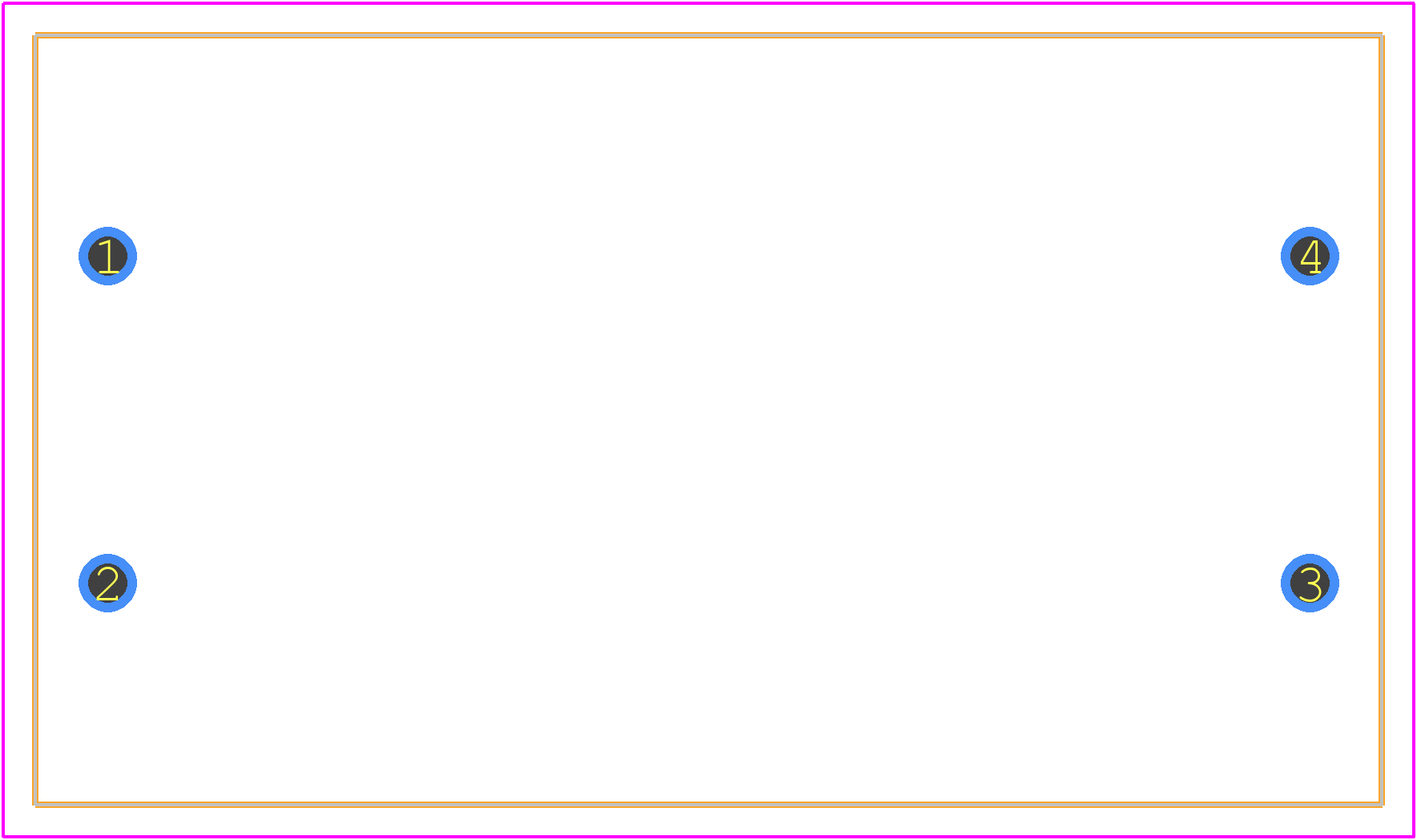

PCB Footprints
MKP1848C61012JP4 - Vishay PCB footprint - Other - Other - MKP1848C61012JP4-3
click to zoom
3D Models
MKP1848C61012JP4 - Vishay - 3D model - Other - MKP1848C61012JP4-3
click to zoom

MKP1848C61012JP4 Details

  • Manufacturer Part Number:

    MKP1848C61012JP4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    8 mΩ

  • Height:

    44 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1200 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    11000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    24 mm

MKP1848C61012JP4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C61012JP4 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848C61012JP4 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the MKP1848C61012JP4 capacitor is suitable for use in DC-DC converter circuits due to its low ESR, high ripple current capability, and high reliability.
  • The shelf life of the MKP1848C61012JP4 capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under normal storage conditions.
  • Yes, the MKP1848C61012JP4 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MKP1848C61012JP4 Overview

Use the download button to access the MKP1848C61012JP4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MKP18, or try a keyword search, such as Ceramic Capacitors
