MKP1848C62580JP4 - Vishay

Description: Film Capacitors MKP , 25 uF , 5% , 800Vdc, pitch 37,5 , 4 pins

Download MKP1848C62580JP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C62580JP4 - Vishay - PCB symbol
click to zoom
PCB Footprints

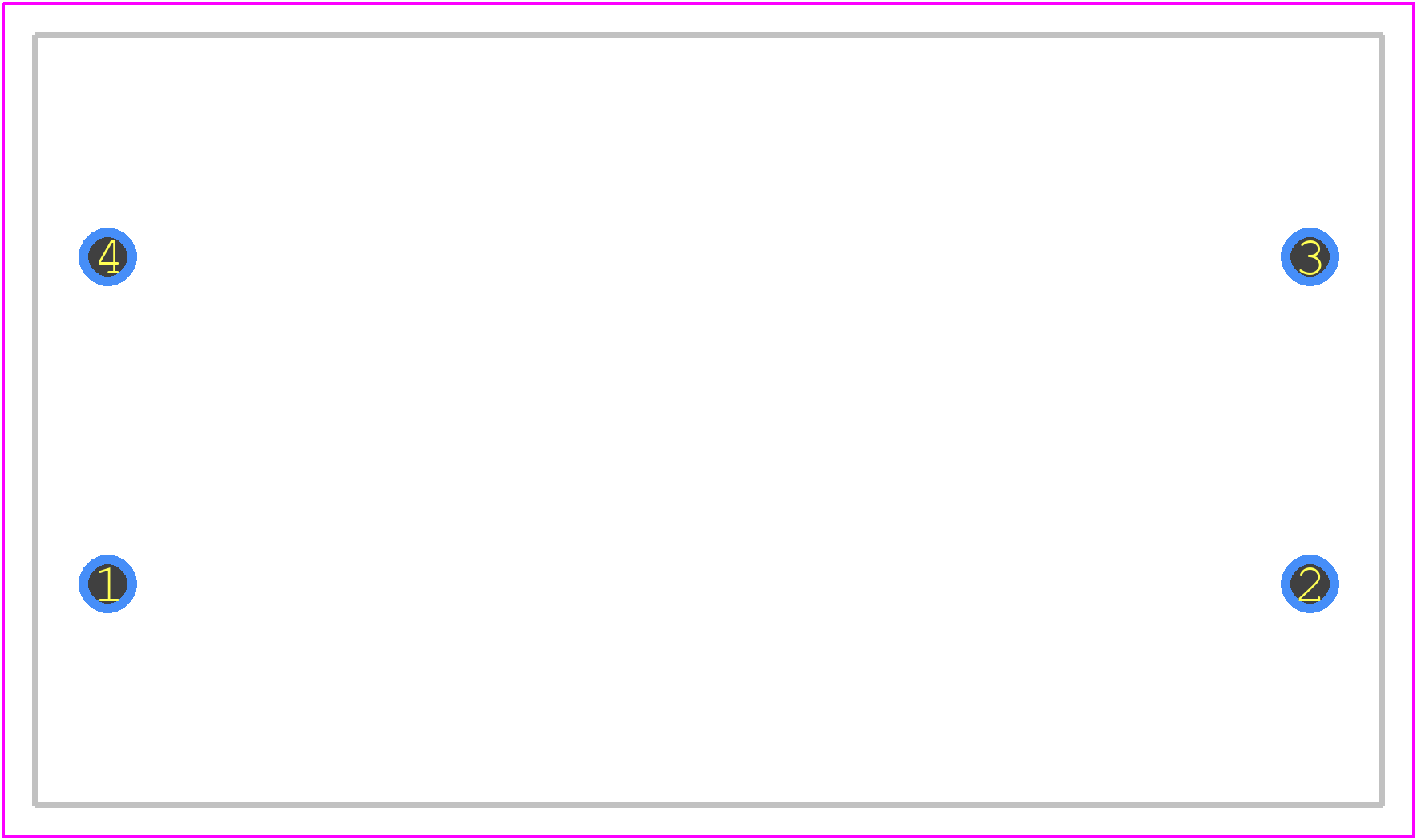

MKP1848C62580JP4 - Vishay PCB footprint - Other - Other - MKP1848C62580JP4-2
click to zoom
3D Models
MKP1848C62580JP4 - Vishay - 3D model - Other - MKP1848C62580JP4-2
click to zoom

MKP1848C62580JP4 Details

  • Manufacturer Part Number:

    MKP1848C62580JP4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    25 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    5 mΩ

  • Height:

    44 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    800 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    14000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    24 mm

MKP1848C62580JP4 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C62580JP4 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848C62580JP4 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the MKP1848C62580JP4 can be used in a DC-blocking circuit due to its low DC resistance and high capacitance. However, it's essential to ensure that the capacitor is not subjected to a DC voltage that exceeds its rated voltage.
  • The MKP1848C62580JP4 has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels without special handling or storage requirements. However, it's still recommended to follow standard humidity and temperature storage guidelines to ensure the capacitor's reliability.
  • The MKP1848C62580JP4 has a maximum operating temperature of 125°C (257°F). While it can tolerate high temperatures, it's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MKP1848C62580JP4 Overview

Use the download button to access the MKP1848C62580JP4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MKP18, or try a keyword search, such as Ceramic Capacitors
