MKP1848C63010JY5 - Vishay

Description: Vishay 30μF Polypropylene Capacitor PP 1kV dc ±5% Tolerance Through Hole MKP1848C Series

Download MKP1848C63010JY5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C63010JY5 - Vishay - PCB symbol
click to zoom
PCB Footprints

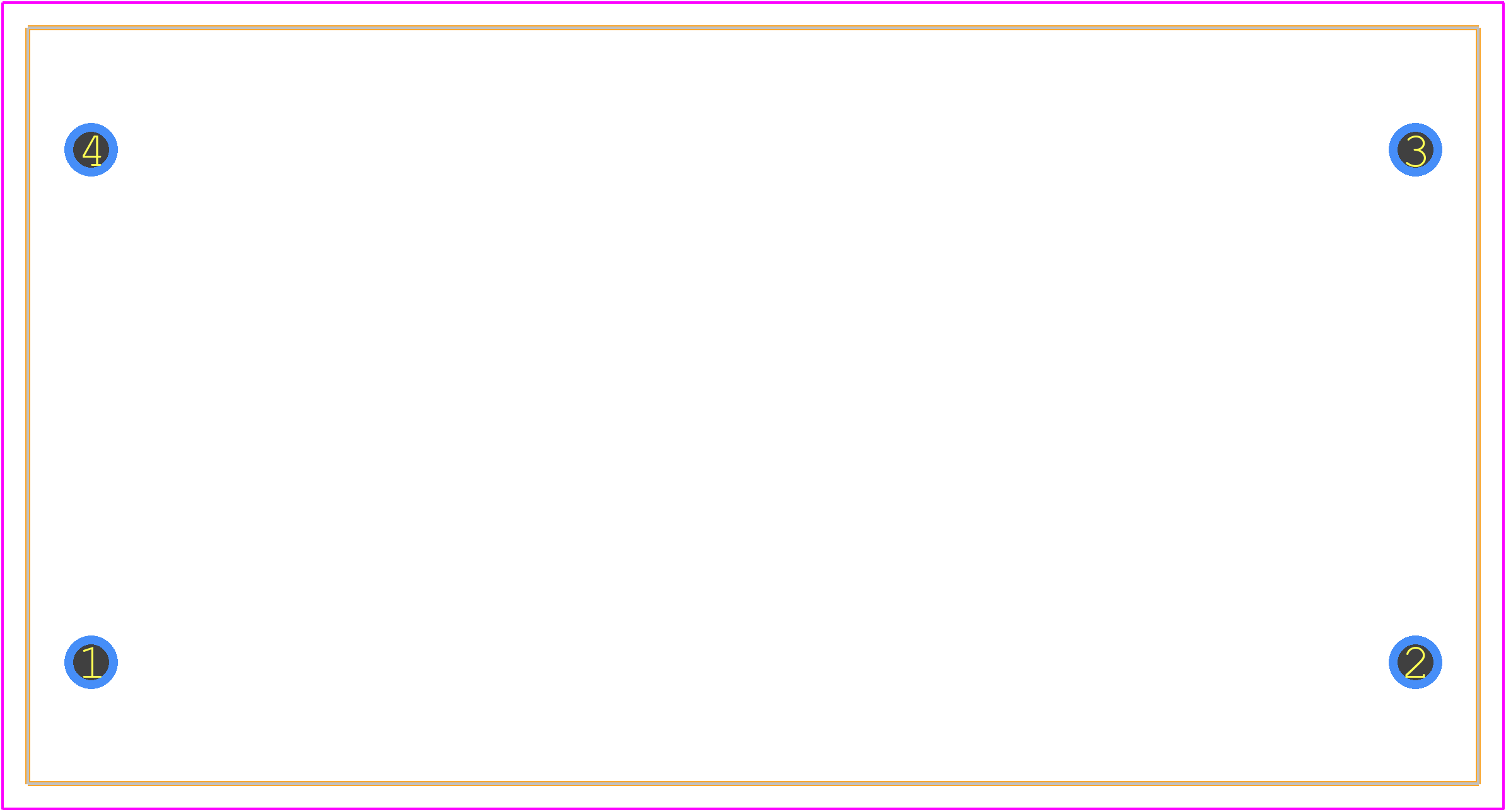

MKP1848C63010JY5 - Vishay PCB footprint - Other - Other - MKP1848C63010JY5-2
click to zoom
3D Models
MKP1848C63010JY5 - Vishay - 3D model - Other - MKP1848C63010JY5-2
click to zoom

MKP1848C63010JY5 Details

  • Manufacturer Part Number:

    MKP1848C63010JY5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    30 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    7 mΩ

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    13000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

MKP1848C63010JY5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C63010JY5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848C63010JY5 capacitor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The maximum operating temperature range for MKP1848C63010JY5 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the MKP1848C63010JY5 capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 10 mm amplitude, and 3 hours per axis.
  • The ESR of the MKP1848C63010JY5 capacitor is 10 mohms maximum at 100 kHz and 20°C (68°F).
