MKP1848C63090JP5 - Vishay

Description: Film Capacitors 30uF 900volt 5% 4pin 37.5x20.3mm

Download MKP1848C63090JP5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C63090JP5 - Vishay - PCB symbol
click to zoom
PCB Footprints

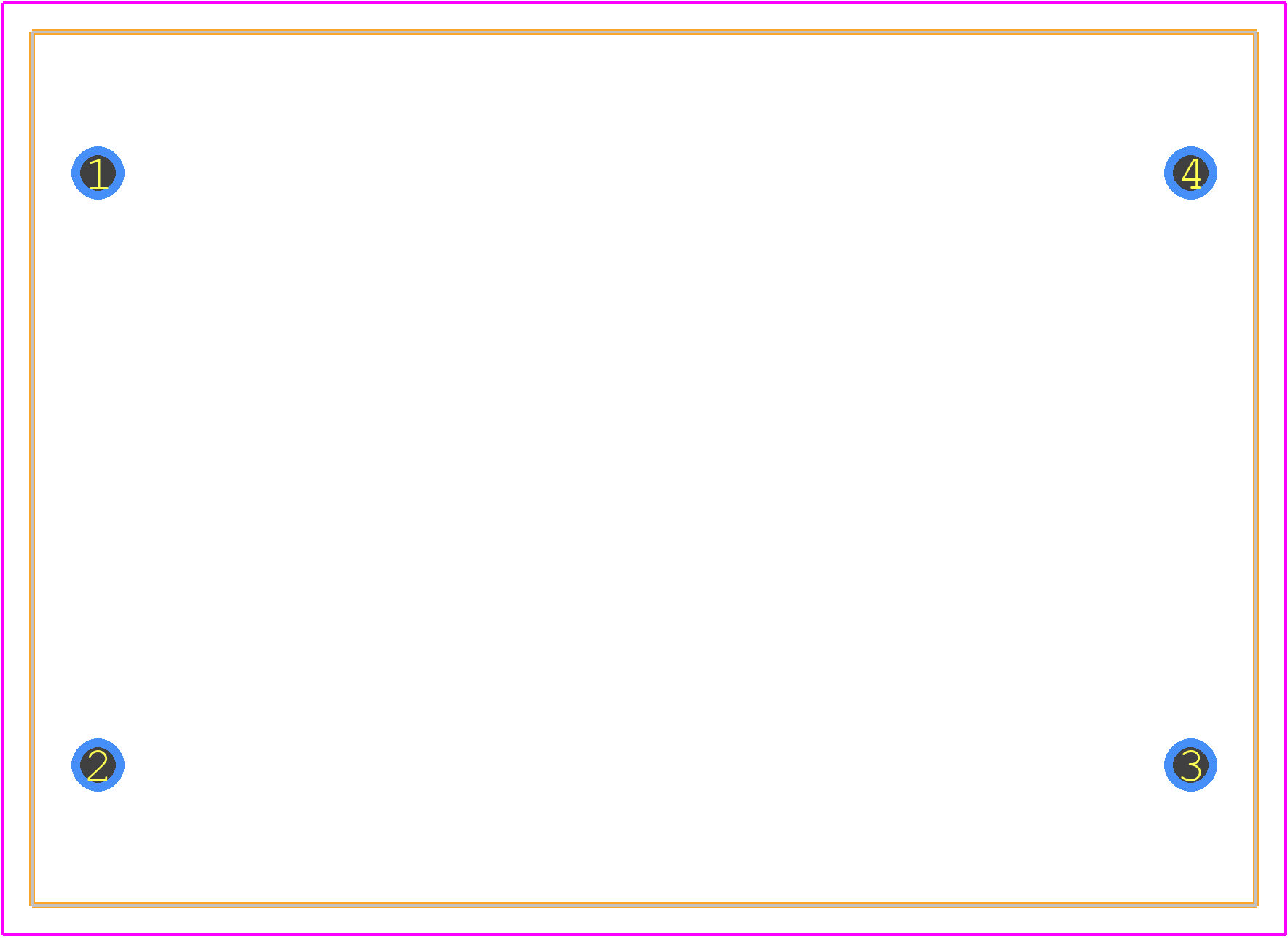

MKP1848C63090JP5 - Vishay PCB footprint - Other - Other - MKP1848C63090JP5-1
click to zoom
3D Models
MKP1848C63090JP5 - Vishay - 3D model - Other - MKP1848C63090JP5-1
click to zoom

MKP1848C63090JP5 Details

  • Manufacturer Part Number:

    MKP1848C63090JP5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    30 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    4 mΩ

  • Height:

    57 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    900 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    18000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

MKP1848C63090JP5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C63090JP5 is 260°C (500°F) for 10 seconds, with a peak temperature of 265°C (509°F) for 5 seconds.
  • Yes, the MKP1848C63090JP5 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the MKP1848C63090JP5 capacitor can be found in the Vishay Intertechnologies application note AN1031, which provides guidance on derating the capacitor's voltage and current ratings based on operating temperature and frequency.
  • Yes, the MKP1848C63090JP5 capacitor is designed to withstand high-vibration environments, with a vibration test rating of 10-2000 Hz, 10 G peak acceleration, and 3 hours per axis.
  • The ESR of the MKP1848C63090JP5 capacitor is 150 mohm maximum at 100 kHz and 25°C (77°F).
