MKP1848C65010JY5 - Vishay

Description: Vishay 50μF Polypropylene Capacitor PP 1kV dc ±5% Tolerance Through Hole MKP1848C Series

Download MKP1848C65010JY5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C65010JY5 - Vishay - PCB symbol
click to zoom
PCB Footprints

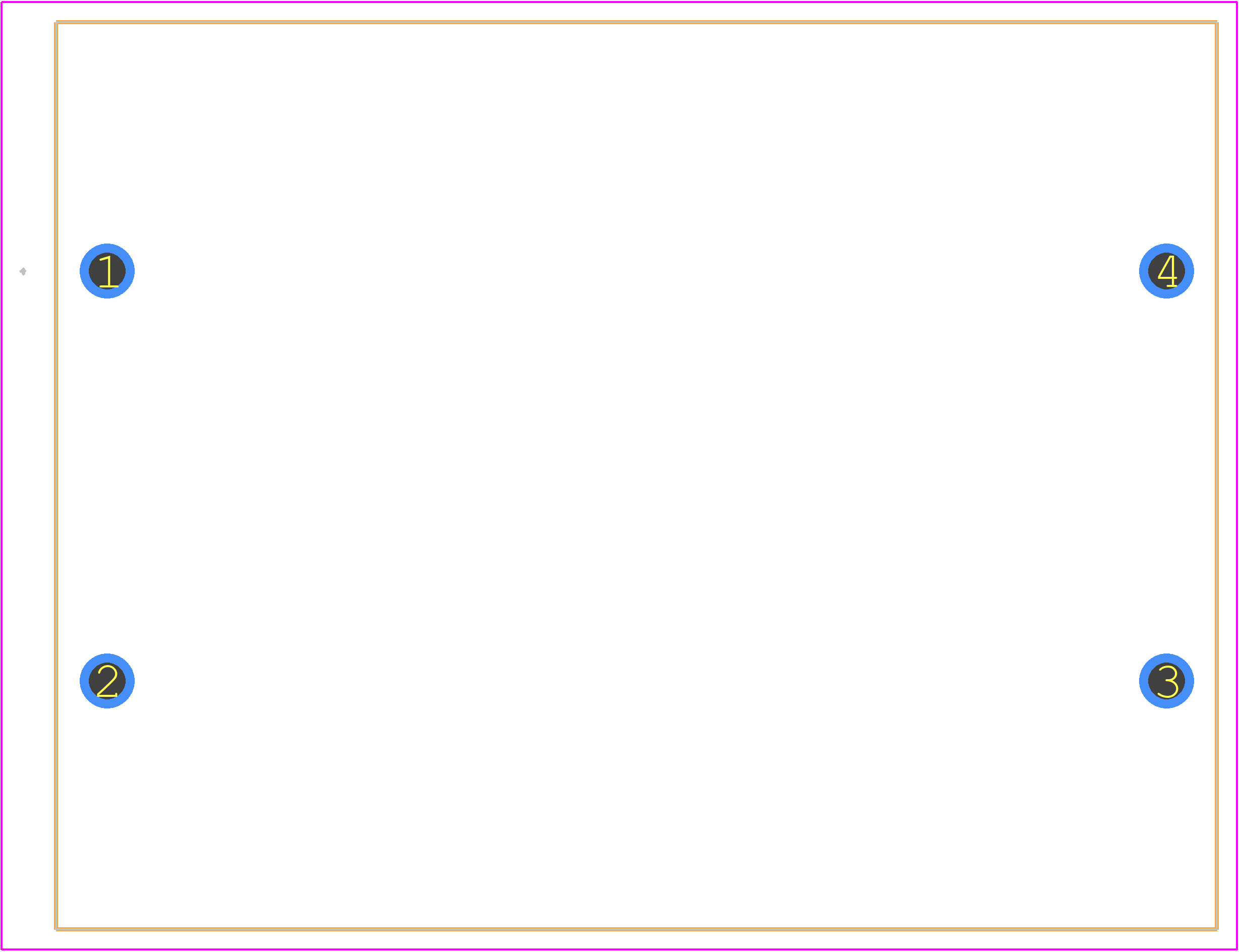

MKP1848C65010JY5 - Vishay PCB footprint - Other - Other - MKP1848C65010JY5-3
click to zoom
3D Models
MKP1848C65010JY5 - Vishay - 3D model - Other - MKP1848C65010JY5-3
click to zoom

MKP1848C65010JY5 Details

  • Manufacturer Part Number:

    MKP1848C65010JY5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    50 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    4 mΩ

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    18000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

MKP1848C65010JY5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C65010JY5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848C65010JY5 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.
  • Yes, the MKP1848C65010JY5 is qualified to the Automotive Electronics Council (AEC) Q200 standard, making it suitable for automotive applications.
  • The shelf life of the MKP1848C65010JY5 capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under controlled environmental conditions.
  • Yes, the MKP1848C65010JY5 capacitor is compliant with the European Union's Restriction of Hazardous Substances (RoHS) and Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MKP1848C65010JY5 Overview

Use the download button to access the MKP1848C65010JY5 schematic symbol, PCB footprint, and 3D model.
