MKP1848C66012JY5 - Vishay

Description: Cap Film 60uF 1200V PP 5%( 57.5 X 65.5 X 65mm) Plastic Rectangular Can 52.5mm 0.0025 Ohm 105°C

Download MKP1848C66012JY5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C66012JY5 - Vishay - PCB symbol
click to zoom
PCB Footprints

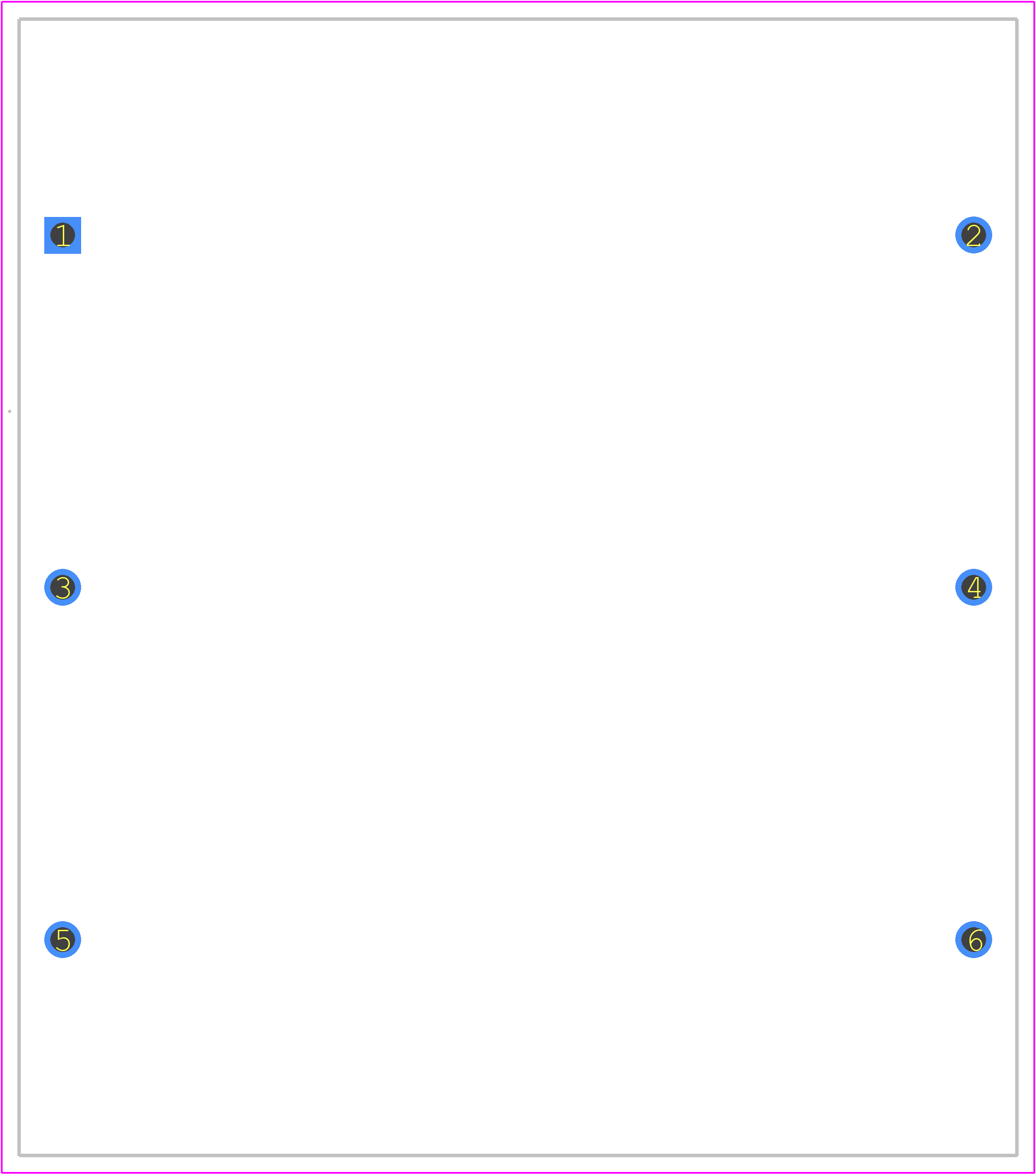

MKP1848C66012JY5 - Vishay PCB footprint - Other - Other - MKP1848C66012JY5
click to zoom
3D Models
MKP1848C66012JY5 - Vishay - 3D model - Other - MKP1848C66012JY5
click to zoom

MKP1848C66012JY5 Details

  • Manufacturer Part Number:

    MKP1848C66012JY5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Capacitance:

    60 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    2.5 mΩ

  • Height:

    65 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1200 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    40000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    65.5 mm
