MKP1848C71050JY5 - Vishay

Description: Film Capacitors 100uF 500volt 5% 4pin 52.5x20.3mm

Download MKP1848C71050JY5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848C71050JY5 - Vishay - PCB symbol
click to zoom

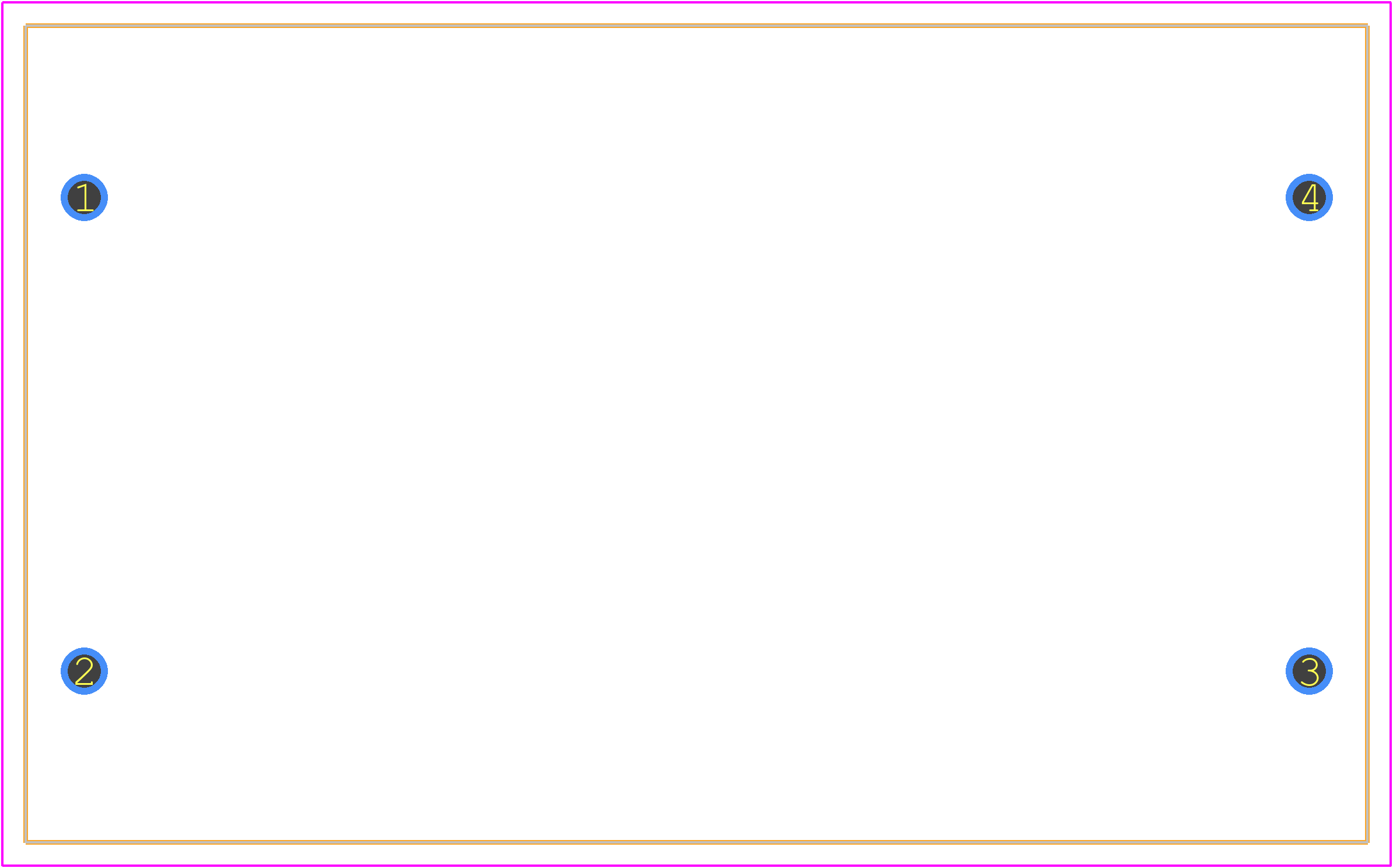

PCB Footprints
MKP1848C71050JY5 - Vishay PCB footprint - Other - Other - MKP1848C71050JY5
click to zoom
3D Models
MKP1848C71050JY5 - Vishay - 3D model - Other - MKP1848C71050JY5
click to zoom

MKP1848C71050JY5 Details

  • Manufacturer Part Number:

    MKP1848C71050JY5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Capacitance:

    100 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    3 mΩ

  • Height:

    50 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    IEC61071; IEC60068

  • Ripple Current:

    19000 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

MKP1848C71050JY5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848C71050JY5 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848C71050JY5 is a metallized polypropylene film capacitor, which makes it suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the MKP1848C71050JY5 can be used in DC-DC converters due to its low ESR, high ripple current capability, and high reliability.
  • Yes, the MKP1848C71050JY5 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The shelf life of the MKP1848C71050JY5 capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a dry, cool place.
