MKP1848H61012JP2 - Vishay

Description: CAP, AEC-Q200, 10UF, 1.2KV, FILM, RADIAL ROHS COMPLIANT: YES

Download MKP1848H61012JP2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848H61012JP2 - Vishay - PCB symbol
click to zoom
PCB Footprints

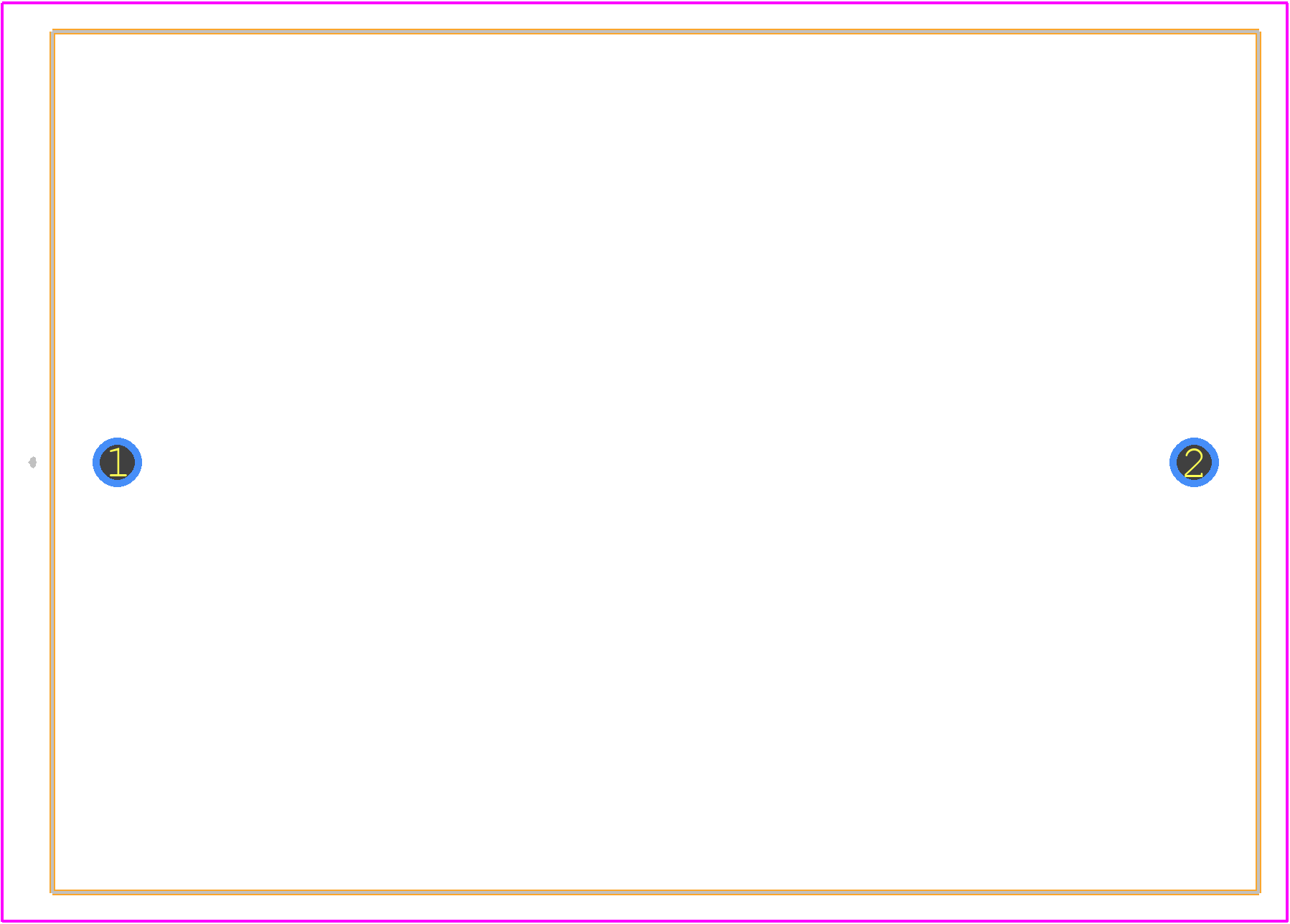

MKP1848H61012JP2 - Vishay PCB footprint - Other - Other - MKP1848H61012JP2-4
click to zoom
3D Models
MKP1848H61012JP2 - Vishay - 3D model - Other - MKP1848H61012JP2-4
click to zoom

MKP1848H61012JP2 Details

  • Manufacturer Part Number:

    MKP1848H61012JP2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.87

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 10KHZ; STANDARD: IEC60068

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    5.6 mΩ

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1200 V

  • Reference Standard:

    AEC-Q200; IEC61071

  • Ripple Current:

    15500 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    37.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

MKP1848H61012JP2 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds, with a peak temperature of 265°C (509°F) for 5 seconds.
  • Yes, the MKP1848H61012JP2 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The MSL of the MKP1848H61012JP2 is MSL 2, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity without requiring baking before reflow soldering.
  • Yes, the MKP1848H61012JP2 is designed to withstand high-vibration environments, with a vibration endurance of 10 Hz to 2000 Hz, 10 G peak acceleration, and 3 hours per axis.
  • The shelf life of the MKP1848H61012JP2 capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under recommended storage conditions.
