MKP1848S62010JY5F - Vishay

Description: Film Capacitors 20uF 1000volt 5% 4pin 52.5x20.3mm LS

Download MKP1848S62010JY5F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848S62010JY5F - Vishay - PCB symbol
click to zoom
PCB Footprints

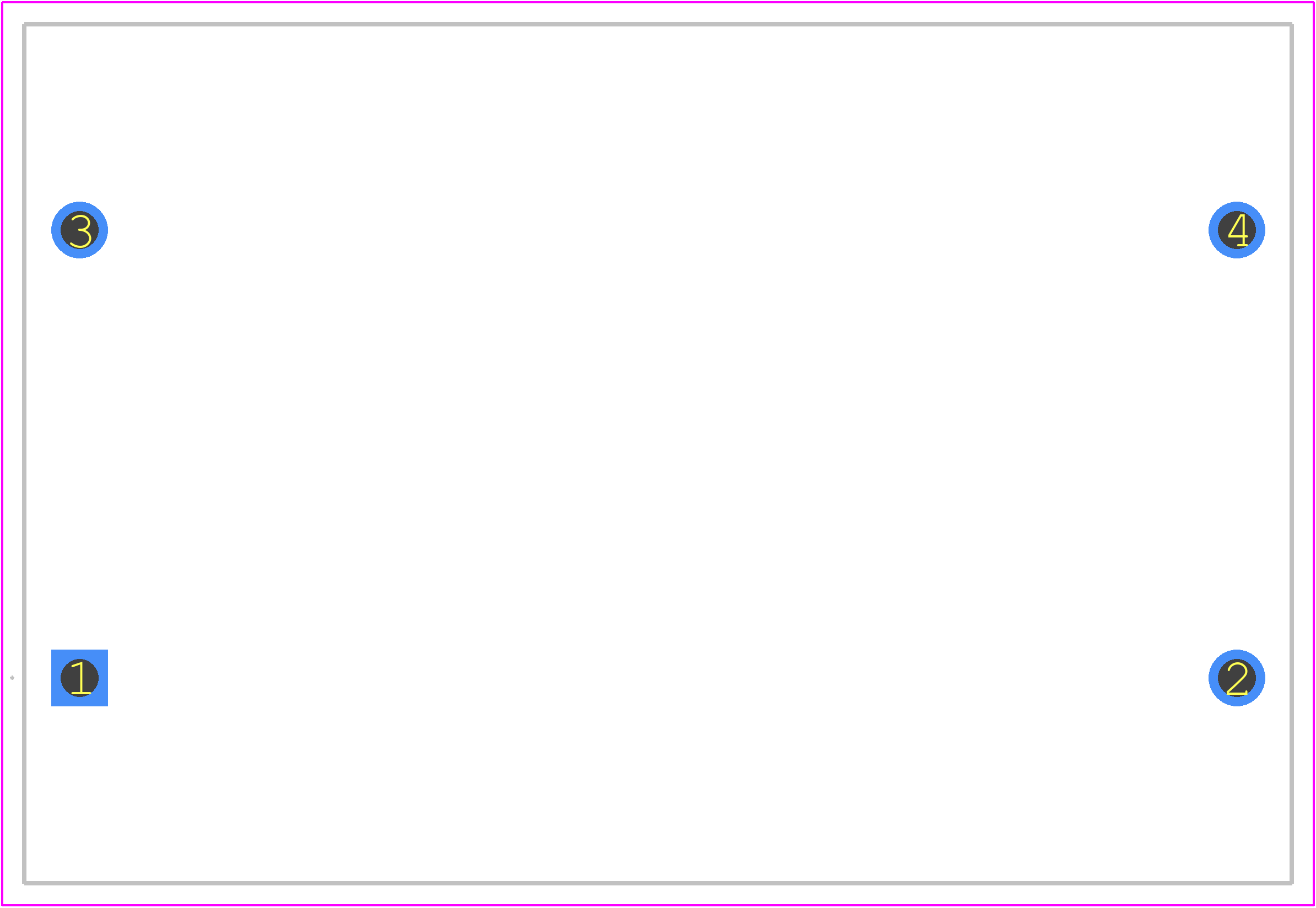

MKP1848S62010JY5F - Vishay PCB footprint - Other - Other - 52.5mm x 20.3mm
click to zoom
3D Models
MKP1848S62010JY5F - Vishay - 3D model - Other - 52.5mm x 20.3mm
click to zoom

MKP1848S62010JY5F Details

  • Manufacturer Part Number:

    MKP1848S62010JY5F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Additional Feature:

    STANDARD: IEC60068

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    24 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1000 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    39 mm

MKP1848S62010JY5F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848S62010JY5F is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the MKP1848S62010JY5F is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the MKP1848S62010JY5F is qualified to the Automotive Electronics Council (AEC) Q200 standard, making it suitable for automotive applications.
  • The MKP1848S62010JY5F has a moisture sensitivity level (MSL) of 3, which means it can withstand exposure to moisture for up to 168 hours without damage.
  • Yes, the MKP1848S62010JY5F is rated for operation up to 125°C (257°F), making it suitable for high-temperature applications.
