MKP1848S62070JY5B - Vishay

Description: Vishay MKP1848S 20μF Polypropylene Film Capacitor 700 V dc ±5%, Through Hole

Download MKP1848S62070JY5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848S62070JY5B - Vishay - PCB symbol
click to zoom
PCB Footprints

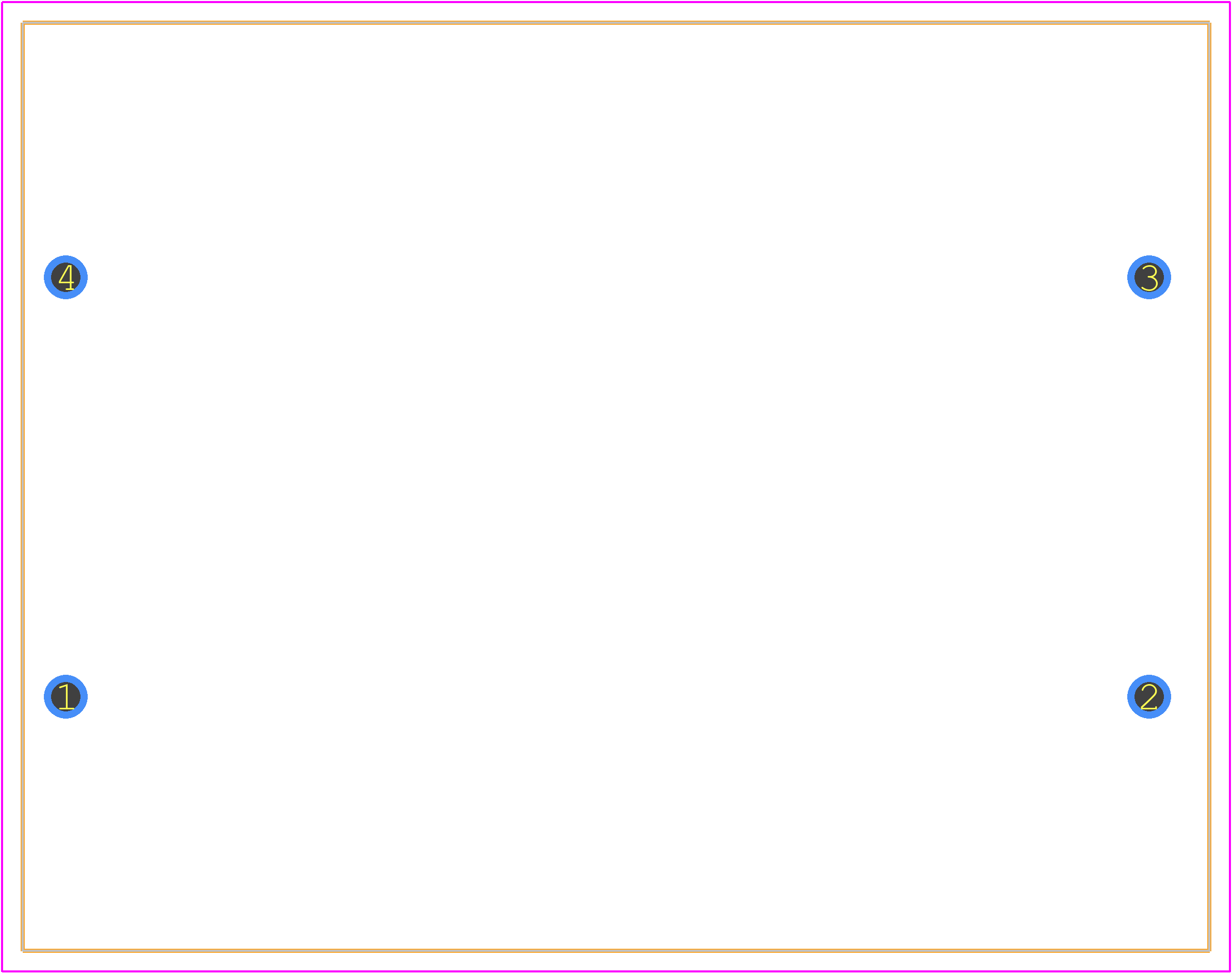

MKP1848S62070JY5B - Vishay PCB footprint - Other - Other - MKP1848S62070JY5B-1
click to zoom
3D Models
MKP1848S62070JY5B - Vishay - 3D model - Other - MKP1848S62070JY5B-1
click to zoom

MKP1848S62070JY5B Details

  • Manufacturer Part Number:

    MKP1848S62070JY5B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Additional Feature:

    STANDARD: IEC60068

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    15 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

MKP1848S62070JY5B Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds, with a peak temperature of 265°C (509°F) for 5 seconds.
  • Yes, the MKP1848S62070JY5B capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The maximum operating temperature range for MKP1848S62070JY5B is -40°C to 125°C (-40°F to 257°F).
  • Yes, the MKP1848S62070JY5B capacitor is designed to withstand high-vibration environments, with a vibration resistance of 10 Hz to 2000 Hz, 10 G peak acceleration.
  • Yes, the MKP1848S62070JY5B capacitor meets the requirements of the Automotive Electronics Council (AEC) and is suitable for use in automotive applications.
