MKP1848S63070JY5F - Vishay

Description: Film Capacitors 30uF 700volt 5% 4pin 52.5x20.3mm LS

Download MKP1848S63070JY5F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848S63070JY5F - Vishay - PCB symbol
click to zoom
PCB Footprints

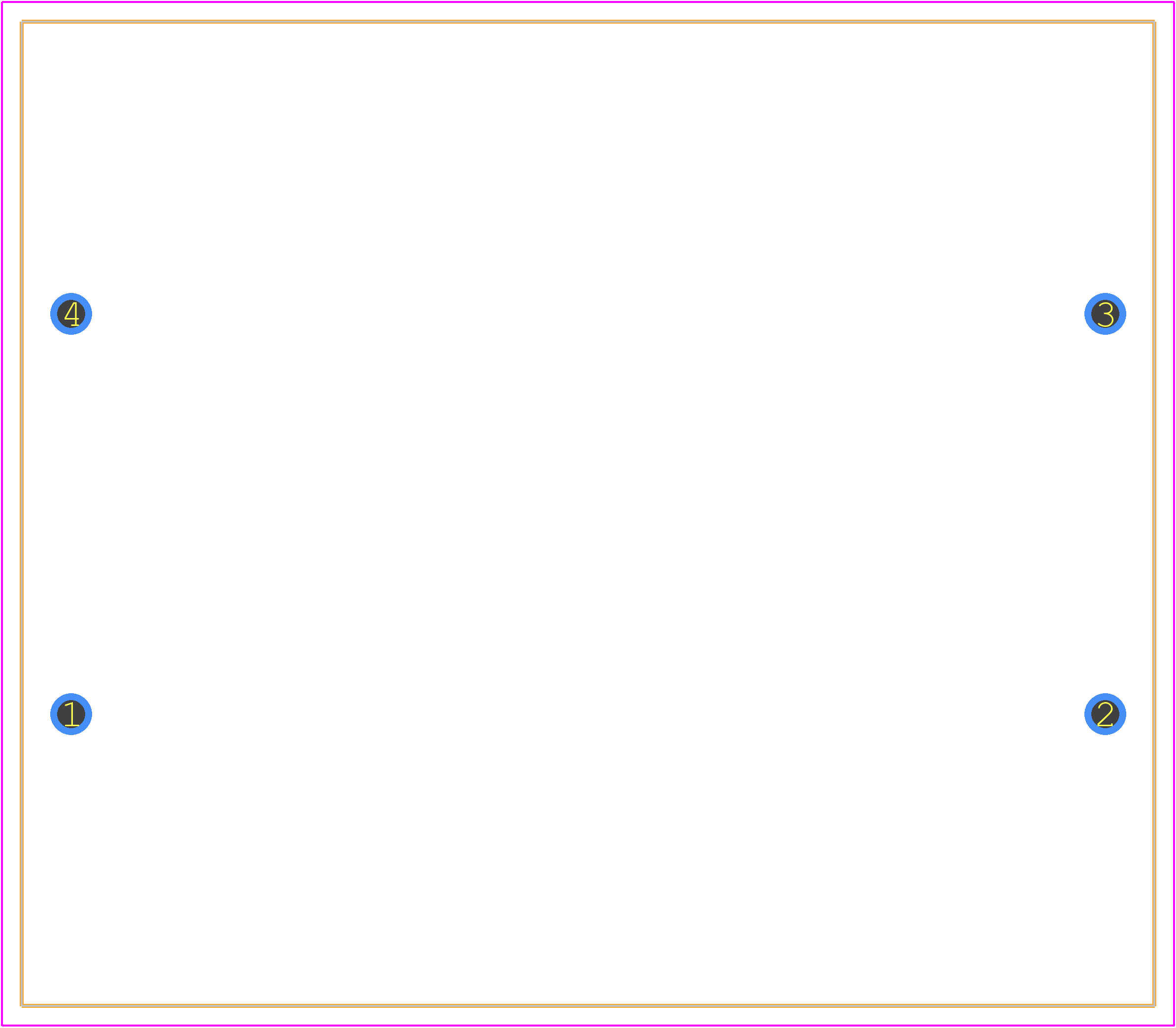

MKP1848S63070JY5F - Vishay PCB footprint - Other - Other - MKP1848S63070JY5F-4
click to zoom
3D Models
MKP1848S63070JY5F - Vishay - 3D model - Other - MKP1848S63070JY5F-4
click to zoom

MKP1848S63070JY5F Details

  • Manufacturer Part Number:

    MKP1848S63070JY5F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Additional Feature:

    STANDARD: IEC60068

  • Capacitance:

    30 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    24 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    700 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Width:

    39 mm

MKP1848S63070JY5F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKP1848S63070JY5F is 260°C (500°F) for 10 seconds, with a peak temperature of 265°C (509°F) for 5 seconds.
  • Yes, the MKP1848S63070JY5F capacitor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The ESR of the MKP1848S63070JY5F capacitor is 63 mΩ at 100 kHz and 20°C.
  • Yes, the MKP1848S63070JY5F capacitor is designed to withstand high-vibration environments, with a vibration test rating of 10 Hz to 2000 Hz, 10 G peak acceleration.
  • The shelf life of the MKP1848S63070JY5F capacitor is 2 years from the date of manufacture, with a recommended storage temperature of 20°C to 30°C (68°F to 86°F) and humidity below 70%.
