MKP1848SE61050JP4C - Vishay

Description: Film Capacitors 10uF 500volt 5% 4 pin AEC-Q200 37.5mm LS

Download MKP1848SE61050JP4C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKP1848SE61050JP4C - Vishay - PCB symbol
click to zoom
PCB Footprints

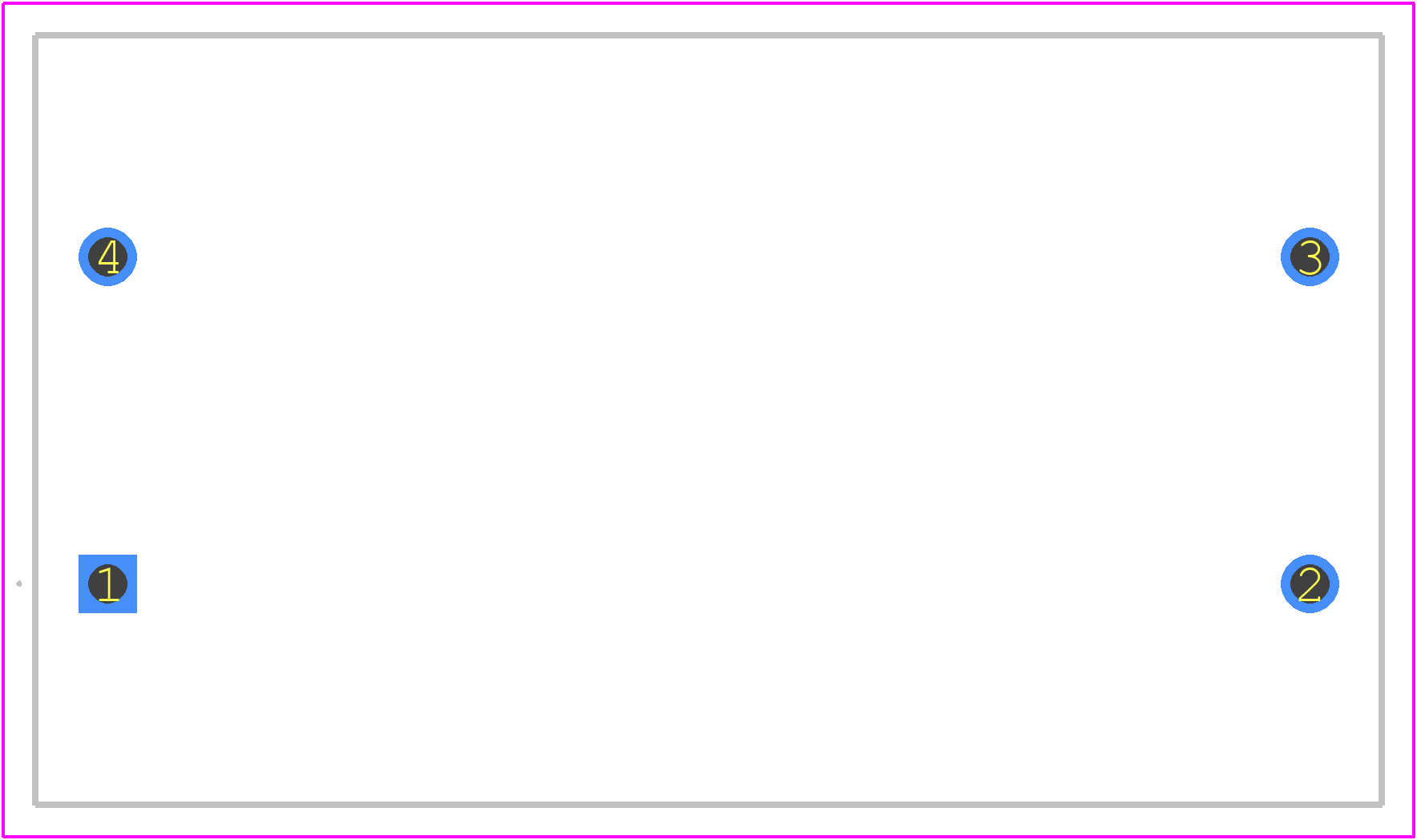

MKP1848SE61050JP4C - Vishay PCB footprint - Other - Other - MKP1848SE61050JP4C-2
click to zoom
3D Models
MKP1848SE61050JP4C - Vishay - 3D model - Other - MKP1848SE61050JP4C-2
click to zoom

MKP1848SE61050JP4C Details

  • Manufacturer Part Number:

    MKP1848SE61050JP4C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.07

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    18 mm

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    PCB Mount

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    AEC-Q200; IEC61071

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    24 mm

MKP1848SE61050JP4C Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the MKP1848SE61050JP4C is a metallized polypropylene film capacitor, which is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonance frequency.
  • The maximum operating temperature range for the MKP1848SE61050JP4C is -40°C to +105°C.
  • Yes, the MKP1848SE61050JP4C capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The recommended storage condition for the MKP1848SE61050JP4C is in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to +40°C and relative humidity below 70%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MKP1848SE61050JP4C Overview

Use the download button to access the MKP1848SE61050JP4C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MKP18, or try a keyword search, such as Film Capacitors
