MKS4C043304D00KSSD - WIMA

Description: 3.3 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized Radial

Download MKS4C043304D00KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKS4C043304D00KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

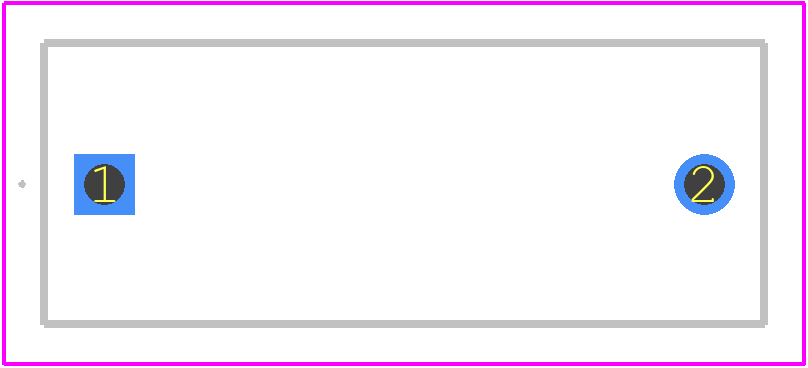

MKS4C043304D00KSSD - WIMA PCB footprint - Other - Other - MKS4C043304D00KSSD-2
click to zoom
3D Models
MKS4C043304D00KSSD - WIMA - 3D model - Other - MKS4C043304D00KSSD-2
click to zoom

MKS4C043304D00KSSD Details

  • Manufacturer Part Number:

    MKS4C043304D00KSSD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    0

  • Capacitance:

    3.3 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYETHYLENE TEREPHTHALATE

  • Height:

    14 mm

  • JESD-609 Code:

    e3

  • Length:

    18 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    40 V

  • Rated (DC) Voltage (URdc):

    63 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    15 mm

  • Terminal Shape:

    WIRE

  • Width:

    7 mm

MKS4C043304D00KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKS4C043304D00KSSD is between 250°C to 260°C, with a maximum exposure time of 5 seconds.
  • Yes, the MKS4C043304D00KSSD capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the MKS4C043304D00KSSD capacitor is rated for operation up to 125°C, making it suitable for high-temperature environments. However, the capacitance value may decrease with increasing temperature.
  • Yes, the MKS4C043304D00KSSD capacitor is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The recommended storage condition for MKS4C043304D00KSSD capacitors is in a dry, cool place with a relative humidity of 50% or less, and a temperature range of 10°C to 30°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MKS4C043304D00KSSD Overview

Use the download button to access the MKS4C043304D00KSSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MKS4C, or try a keyword search, such as Film Capacitors
