MKS4U041009FD4KSSD - WIMA

Description: Film Capacitors MKS 4 1.0 F 2000 VDC 35x50x57 RM52.5

Download MKS4U041009FD4KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKS4U041009FD4KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

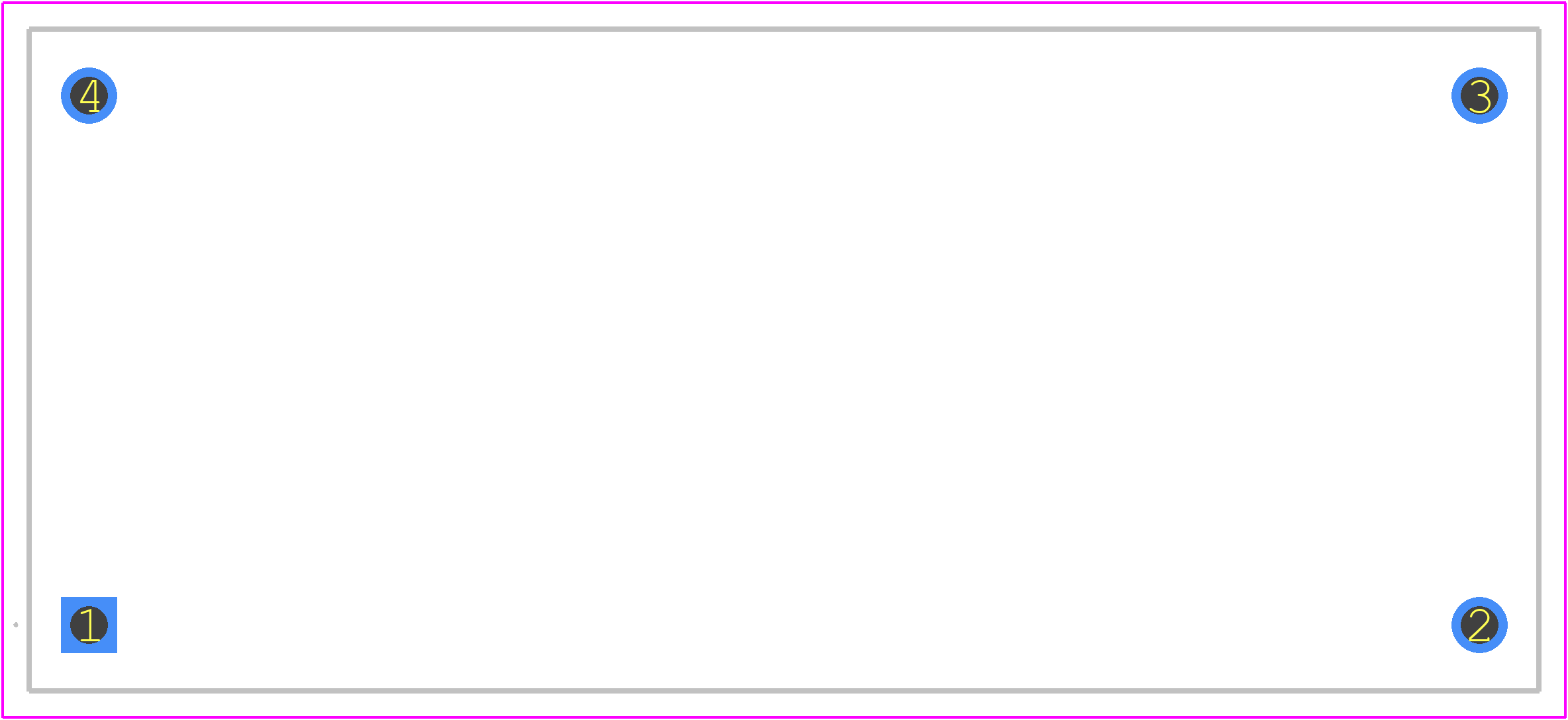

MKS4U041009FD4KSSD - WIMA PCB footprint - Other - Other - MKS4U041009FD4KSSD-1
click to zoom
3D Models
MKS4U041009FD4KSSD - WIMA - 3D model - Other - MKS4U041009FD4KSSD-1
click to zoom

MKS4U041009FD4KSSD Details

  • Manufacturer Part Number:

    MKS4U041009FD4KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    0

  • Capacitance:

    1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYETHYLENE TEREPHTHALATE

  • Height:

    50 mm

  • JESD-609 Code:

    e3

  • Length:

    57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    Tray

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    400 V

  • Rated (DC) Voltage (URdc):

    2000 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    52.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

MKS4U041009FD4KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the MKS4U041009FD4KSSD capacitor is between 250°C to 260°C, with a maximum exposure time of 5 seconds.
  • Yes, the MKS4U041009FD4KSSD capacitor is designed for high-frequency applications up to 100 kHz, making it suitable for use in switching power supplies, DC-DC converters, and other high-frequency circuits.
  • The maximum ripple current rating for the MKS4U041009FD4KSSD capacitor is 3.5 Arms at 100 kHz, 85°C.
  • Yes, the MKS4U041009FD4KSSD capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The shelf life of the MKS4U041009FD4KSSD capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under normal storage conditions (20°C to 30°C, 60% to 90% relative humidity).
