MKT1820712255 - Vishay

Description: 120 µF Film Capacitor 160V 250V Polyester, Metallized Radial

Download MKT1820712255 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKT1820712255 - Vishay - PCB symbol
click to zoom
PCB Footprints

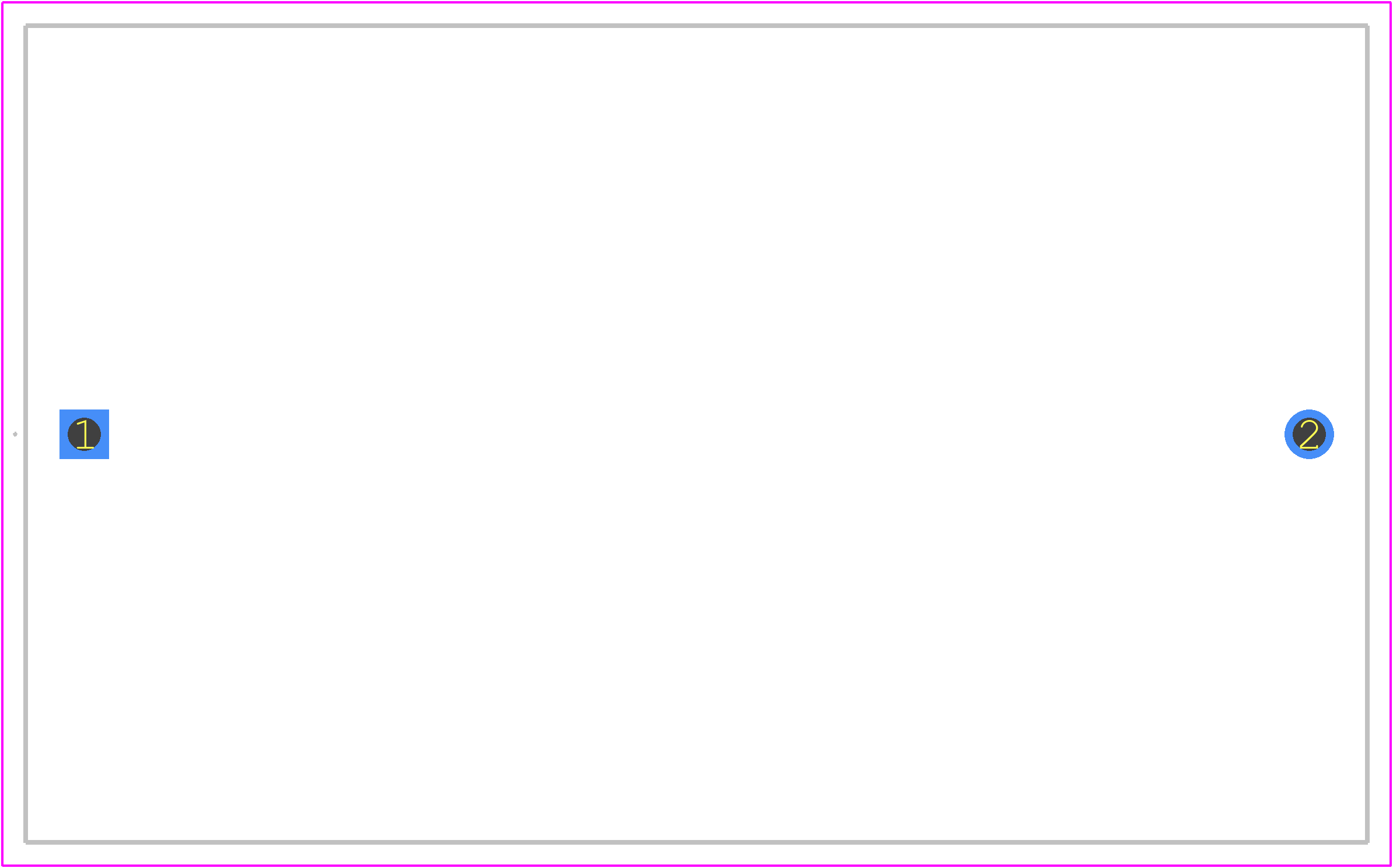

MKT1820712255 - Vishay PCB footprint - Other - Other - MKT1820712255-1
click to zoom
3D Models
MKT1820712255 - Vishay - 3D model - Other - MKT1820712255-1
click to zoom

MKT1820712255 Details

  • Manufacturer Part Number:

    MKT1820712255

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    120 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYESTER

  • Height:

    50 mm

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    100 V

  • Rated (DC) Voltage (URdc):

    250 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    52.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

MKT1820712255 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MKT1820712255 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the MKT1820712255 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The ESR of the MKT1820712255 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 50-70 mΩ at 100 kHz, based on similar capacitors from Vishay.
  • While the MKT1820712255 capacitor is designed to be reliable, it's not specifically designed for high-vibration applications. However, Vishay does offer other capacitor series that are designed to withstand high vibrations, such as the MKT-A series.
  • The MSL of the MKT1820712255 capacitor is MSL 2, which means it can be exposed to a maximum of 30°C/60% RH for 40 hours before soldering.
