Vishay recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
Yes, the MKT1820722165 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). However, the specific frequency range depends on the application and should be verified through simulation or testing.
The MKT1820722165 is rated for operation up to 125°C (257°F). While it can tolerate short-term excursions up to 150°C (302°F), prolonged exposure above 125°C may affect its reliability and lifespan.
To ensure optimal reliability, handle the MKT1820722165 capacitor by the body, avoiding touching the leads or electrodes. Store the components in a dry, cool place, and avoid exposing them to mechanical stress, moisture, or contamination.
Yes, to minimize parasitic inductance and ensure optimal performance, keep the PCB traces short and wide, and avoid routing traces under the capacitor. Also, ensure a solid ground plane under the capacitor to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MKT1820722165 Overview

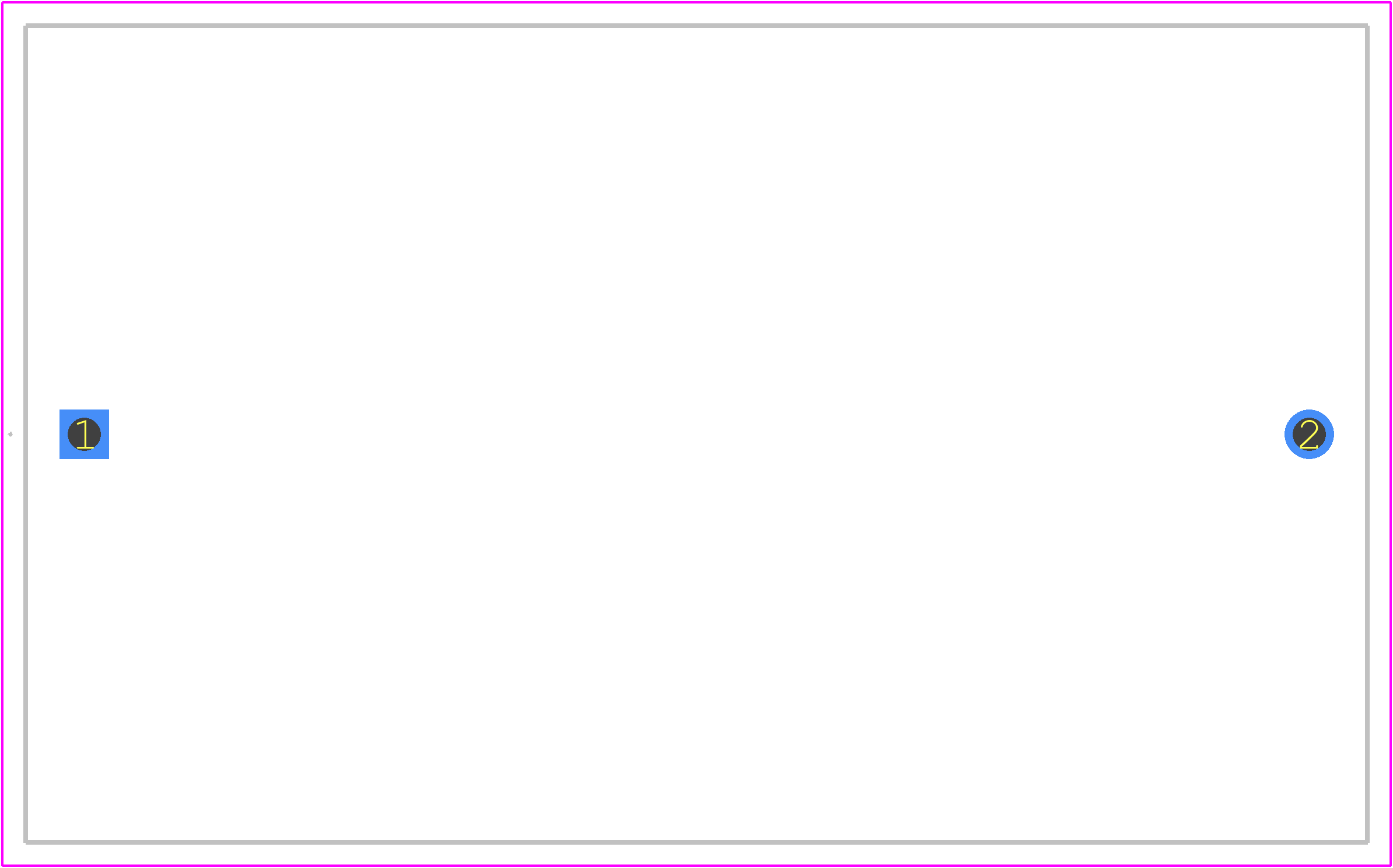

Use the download button to access the MKT1820722165 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MKT18,
or try a keyword search, such as Ceramic Capacitors
