MKT1820733015 - Vishay

Description: Cap Film 330uF 100V PET 10% (57.5 X 35 X 50mm) Radial 52.5mm 125°C Bulk/Tray

Download MKT1820733015 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKT1820733015 - Vishay - PCB symbol
click to zoom
PCB Footprints

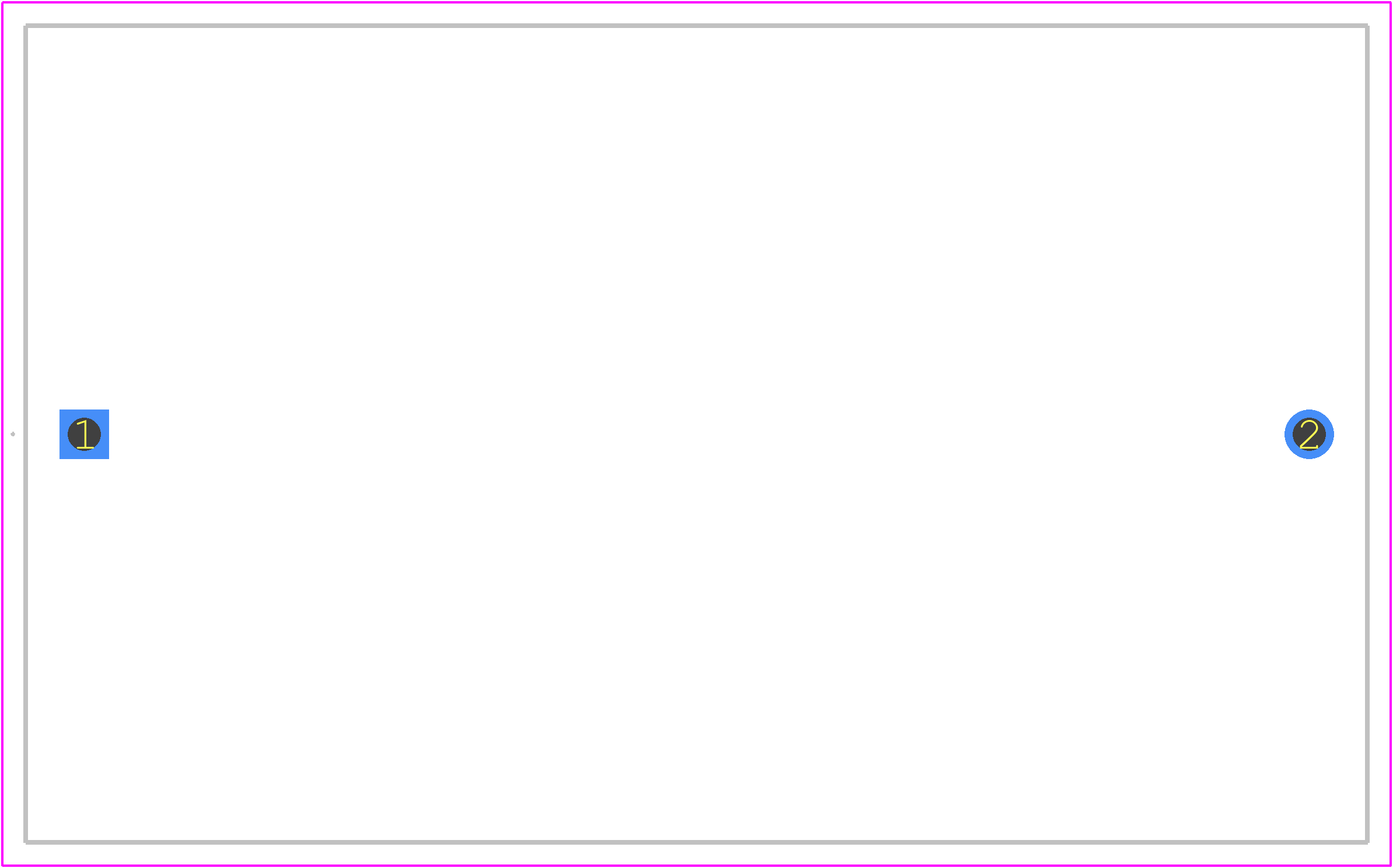

MKT1820733015 - Vishay PCB footprint - Other - Other - 57.5 X 35 X 50mm
click to zoom
3D Models
MKT1820733015 - Vishay - 3D model - Other - 57.5 X 35 X 50mm
click to zoom

MKT1820733015 Details

  • Manufacturer Part Number:

    MKT1820733015

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.26

  • Capacitance:

    330 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYESTER

  • Height:

    50 mm

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    63 V

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    52.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

MKT1820733015 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the MKT1820733015 is a metallized polyester film capacitor, which makes it suitable for high-frequency applications up to 100 kHz. However, it's essential to consider the capacitor's self-resonant frequency and impedance characteristics when designing high-frequency circuits.
  • The derating curve for the MKT1820733015 capacitor is not explicitly provided in the datasheet. However, as a general guideline, it's recommended to derate the capacitor's voltage rating by 1.25 to 1.5 times the maximum operating voltage to ensure reliable operation and prevent premature failure.
  • The MKT1820733015 capacitor is not designed for use in humid or high-moisture environments. It's recommended to use a capacitor with a higher moisture resistance rating, such as a ceramic or film capacitor with a moisture-resistant coating, in applications where humidity is a concern.
  • The recommended storage condition for the MKT1820733015 capacitor is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and a relative humidity of 60% or less. Avoid storing the capacitors in direct sunlight or near heat sources.
