MKW36Z512VHT4 - NXP

Description: IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz 64-VFLGA

Download MKW36Z512VHT4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

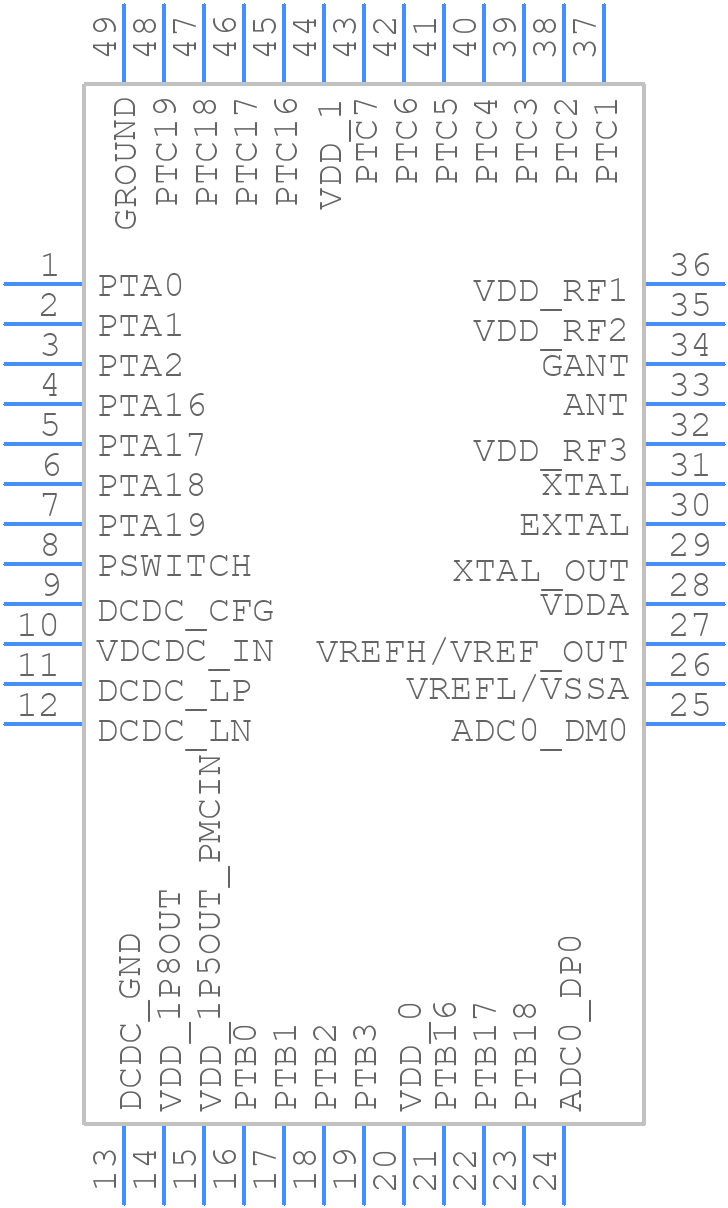

MKW36Z512VHT4 - NXP - PCB symbol
click to zoom
PCB Footprints
MKW36Z512VHT4 - NXP PCB footprint - Other - Other - SOT1649-1
click to zoom
3D Models
MKW36Z512VHT4 - NXP - 3D model - Other - SOT1649-1
click to zoom

MKW36Z512VHT4 Details

  • Manufacturer Part Number:

    MKW36Z512VHT4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-09-05

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MKW36Z512VHT4 Frequently Asked Questions (FAQs)

  • The MKW36Z512VHT4 can operate from -40°C to 105°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The MKW36Z512VHT4 can use an external crystal oscillator, an internal RC oscillator, or an external clock source. The clock source can be configured using the CLK_CFG register in the System Clock Gating Control Register (SCG).
  • The maximum current consumption of the MKW36Z512VHT4 is approximately 50 mA at 3.3V and 48 MHz, but this can vary depending on the specific application and operating conditions.
  • The MKW36Z512VHT4 has several low-power modes, including Stop, VLPR, and VLPW. These modes can be entered using the PMC (Power Management Controller) and can be configured using the PMC_CTRL register.
  • The maximum frequency of the MKW36Z512VHT4 is 48 MHz, but it can be overclocked to 50 MHz with reduced voltage and temperature ranges.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MKW36Z512VHT4 Overview

Use the download button to access the MKW36Z512VHT4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MKW36, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
