MKW40-12S12-HS - Minmax

Description: The MKW40 series is a generation of high performance DC-DC converter modules. The product offers fully 40W in an encapsulated, shielded metal package with dimensions of just 2.0"x1.0"x0.4". All models provide wide 2:1 input voltage range and precisely regulated output voltages. Advanced circuit topology provides a very high efficiency up to 92% which allows an operating temperature range of -40℃ to +80℃. Further features include remote On/Off, trimmable output voltage, under-voltage shutdown as well as over

Download MKW40-12S12-HS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MKW40-12S12-HS - Minmax - PCB symbol
click to zoom
PCB Footprints

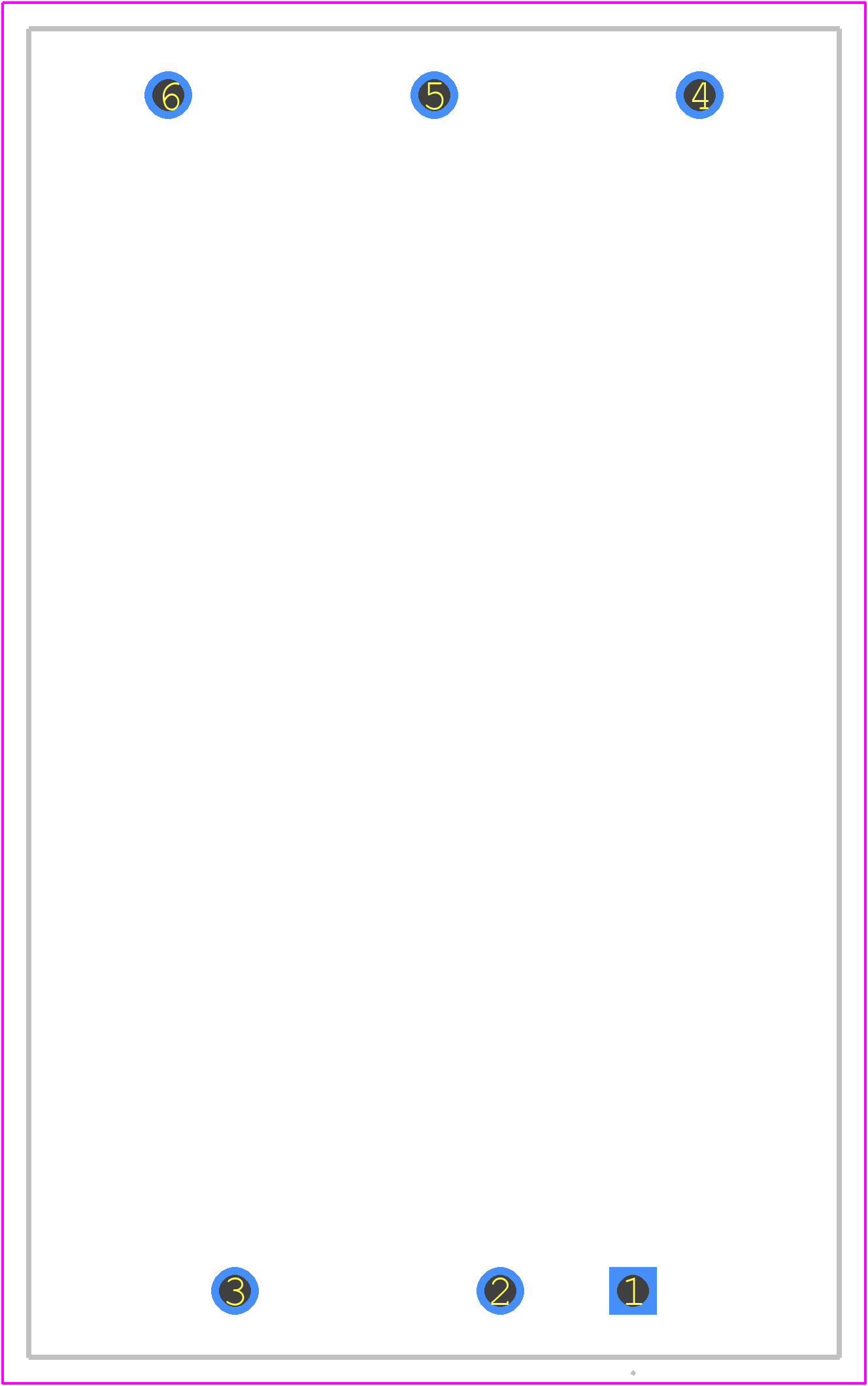

MKW40-12S12-HS - Minmax PCB footprint - Other - Other - MKW40-12S12-HS-1
click to zoom
3D Models
MKW40-12S12-HS - Minmax - 3D model - Other - MKW40-12S12-HS-1
click to zoom

MKW40-12S12-HS Details

  • Manufacturer Part Number:

    MKW40-12S12-HS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, CB, CSA, CUL, EN, IEC, UL

  • Efficiency (Main Output):

    89%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-MDMA-P6

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    57 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.33 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,1.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    10.45 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    40 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.03 s

  • Width:

    25.4 mm

MKW40-12S12-HS Frequently Asked Questions (FAQs)

  • Minmax recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 2oz copper thickness is recommended for the top and bottom layers.
  • To ensure stable output voltage, use a high-quality output capacitor with low ESR, and follow the recommended PCB layout guidelines. Additionally, the module's output voltage can be adjusted using the trim pin (VTRIM) with an external resistor divider network.
  • The maximum allowable input voltage ripple and noise is 1% of the nominal input voltage, with a maximum amplitude of 1V. Exceeding this may affect the converter's performance and reliability.
  • While the module is rated for operation up to 85°C, it's essential to consider derating the output power and ensuring proper thermal management to prevent overheating. Consult Minmax's application notes for high-temperature operation guidelines.
  • Use a TVS (Transient Voltage Suppressor) diode or a surge protector at the input to protect the module from voltage surges and spikes. Ensure the TVS diode is rated for the maximum expected input voltage and surge energy.
