Part Image

ML4824CP1 - onsemi

Description: IC, PFC/PWM CONTROLLER, 4824, DIP16; UVLO:3V; Supply Voltage Min:-; Supply Voltage Max:11.8V; Startup Current:700 A; Operating Supply Current:16mA; Controller IC Case Style:DIP; No. of Pins:16Pins; Duty Cycle (%):95%; RoHS Compliant: Yes

Download ML4824CP1 Model

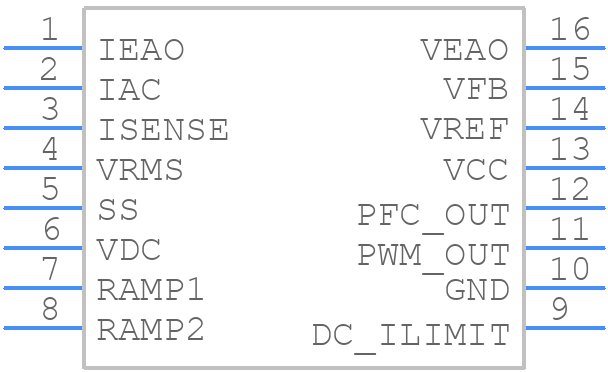

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

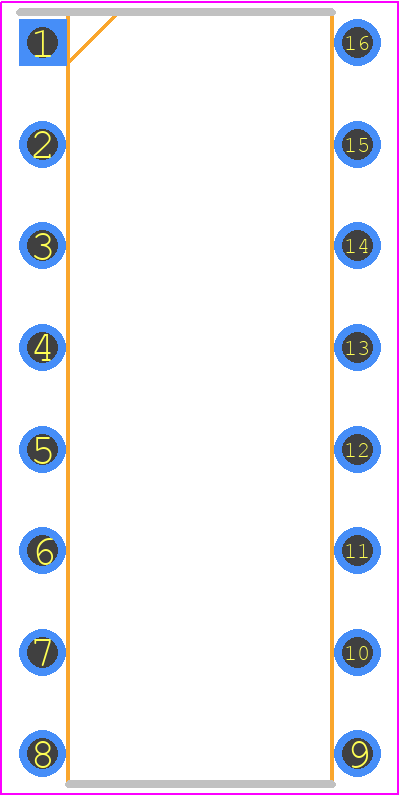

ML4824CP1 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-16--
click to zoom
3D Models
ML4824CP1 - onsemi  - 3D model - Dual-In-Line Packages - PDIP-16--
click to zoom

ML4824CP1 Details

  • Manufacturer Part Number:

    ML4824CP1

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP, DIP16,.3

  • Manufacturer Package Code:

    N16E

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER WITH POST REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.05 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.32 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ML4824CP1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the device's junction temperature (TJ) and adjust the design accordingly.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, the ML4824CP1 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within the recommended operating conditions and follow the manufacturer's guidelines.
  • Check the input voltage, output voltage, and feedback resistors. Verify that the device is properly configured and that the output capacitor is suitable for the application. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ML4824CP1 Overview

Use the download button to access the ML4824CP1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ML482, or try a keyword search, such as Switching Regulator or Controllers
