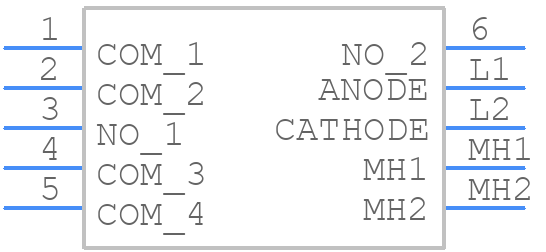

Symbol

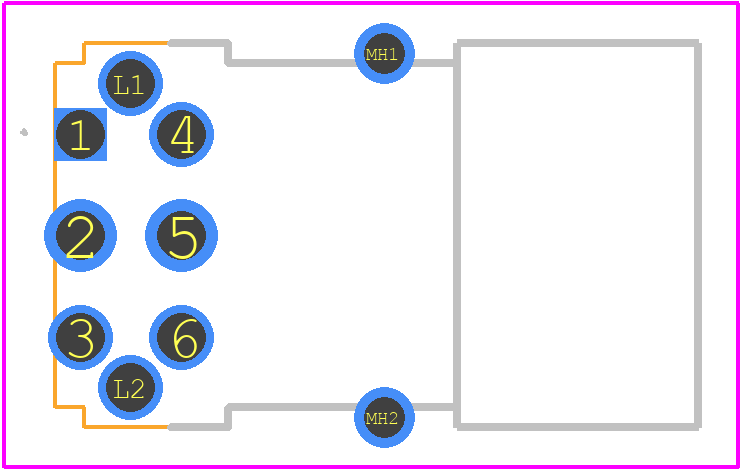

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ML8-A03BQA-0
- Part Number ML8-A03BQA-0
- Manufacturer Diptronics
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - ML8-A03BQA-0-5
- Released Date Aug 3, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ML8-A03BQA-0 Details
-
Manufacturer Part Number:
ML8-A03BQA-0
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Diptronics Manufacturing Inc
-
YTEOL:
7
-
Switch Type:
KEYPAD SWITCH
Trust Checks
Community Provided
System Verified
Community Approved
ML8-A03BQA-0 Overview
Use the download button to access the ML8-A03BQA-0 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ML8-A,
or try a keyword search, such as Keypad Switches
