MLE-117-01-G-DV-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

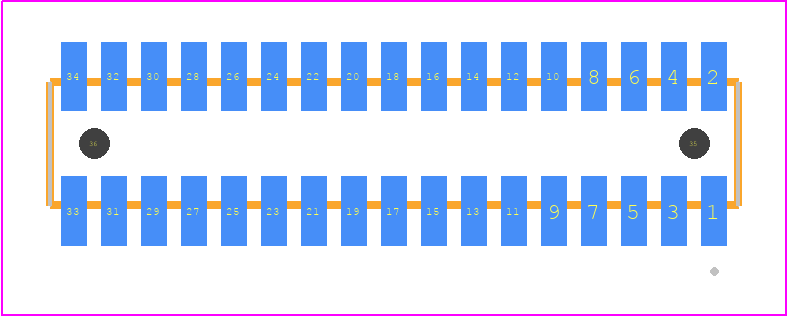

PCB Footprints

MLE-117-01-G-DV-A - SAMTEC PCB footprint - Other - Other - MLE-117-01-G-DV-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MLE-117-01-G-DV-A
Part Number MLE-117-01-G-DV-A
Manufacturer SAMTEC
Pin Count 34
Part Category Connector
Package Category Other
Footprint Name Other - MLE-117-01-G-DV-A
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MLE-117-01-G-DV-A Details

Manufacturer Part Number:
MLE-117-01-G-DV-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
10
Board Mounting Option:
SOLDER HOLDING POSTS
Body Breadth:
0.121 inch
Body Depth:
0.123 inch
Body Length:
0.663 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.039 inch
Mating Contact Row Spacing:
0.039 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.175 mm
Plating Thickness:
10u inch
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
34

MLE-117-01-G-DV-A Frequently Asked Questions (FAQs)

The recommended mating sequence for the MLE-117-01-G-DV-A connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the MLE-117-01-G-DV-A connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications such as aerospace, automotive, and industrial control systems.
The maximum operating temperature for the MLE-117-01-G-DV-A connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
Yes, the MLE-117-01-G-DV-A connector is designed to accommodate PCBs with different thicknesses. However, it's recommended to consult with Samtec's application engineers to ensure proper mating and to determine any necessary modifications to the connector or PCB.
The typical lead time for the MLE-117-01-G-DV-A connector varies depending on the quantity and availability. However, Samtec typically quotes a lead time of 6-8 weeks for standard orders. Expedited lead times may be available for an additional fee.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MLE-117-01-G-DV-A Overview

Use the download button to access the MLE-117-01-G-DV-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MLE-1, or try a keyword search, such as Headers and Edge Type Connectors
