MLE-150-01-G-DV-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

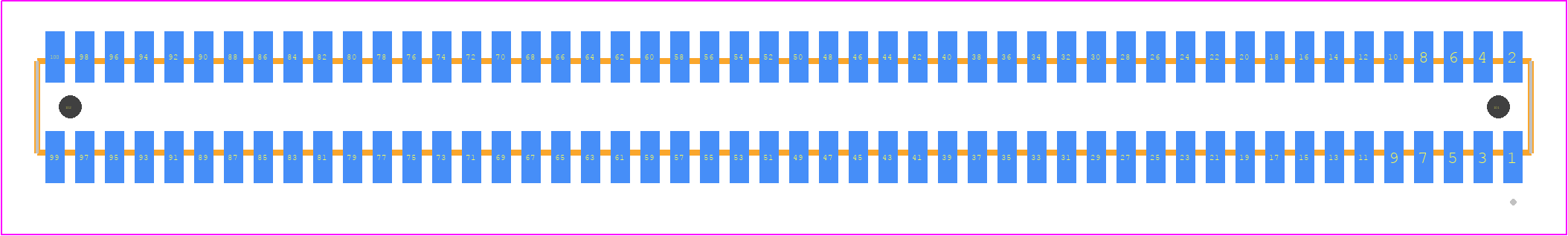

PCB Footprints

MLE-150-01-G-DV-A - SAMTEC PCB footprint - Other - Other - MLE-150-01-G-DV-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MLE-150-01-G-DV-A
Part Number MLE-150-01-G-DV-A
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - MLE-150-01-G-DV-A
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MLE-150-01-G-DV-A Details

Manufacturer Part Number:
MLE-150-01-G-DV-A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
10
Board Mounting Option:
POSITIONING PIN
Body Breadth:
0.121 inch
Body Depth:
0.13 inch
Body Length:
1.95 inch
Body/Shell Style:
PLUG
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
.7506 N
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.039 inch
Mating Contact Row Spacing:
0.039 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.3782 mm
Plating Thickness:
10u inch
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
100
Withdrawl Force-Min:
.139 N

MLE-150-01-G-DV-A Frequently Asked Questions (FAQs)

The recommended mating sequence for the MLE-150-01-G-DV-A connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the MLE-150-01-G-DV-A connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications such as aerospace, automotive, and industrial control systems.
The MLE-150-01-G-DV-A connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications.
Yes, the MLE-150-01-G-DV-A connector is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly systems.
The typical lead time for delivery of the MLE-150-01-G-DV-A connector is 6-8 weeks, depending on the quantity and availability. However, it's best to check with Samtec Inc or an authorized distributor for the most up-to-date lead time information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MLE-150-01-G-DV-A Overview

Use the download button to access the MLE-150-01-G-DV-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MLE-1, or try a keyword search, such as Headers and Edge Type Connectors
