MLESGN-A1-0000-000101 - CREE LED

Description: High Power LEDs - Single Color Green, 35.2lm

Download MLESGN-A1-0000-000101 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MLESGN-A1-0000-000101 model

Email notifications will be applied after download.

Send part feedback

Symbol

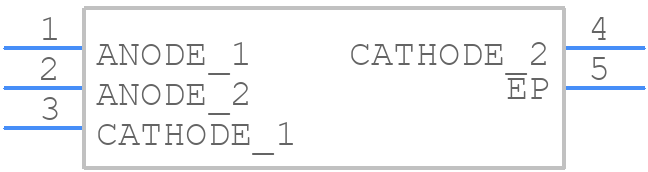

MLESGN-A1-0000-000101 - CREE LED - PCB symbol

PCB Footprints

MLESGN-A1-0000-000101 - CREE LED PCB footprint - Other - Other - MLESGN-A1-0000-000101-1

3D Models

MLESGN-A1-0000-000101 - CREE LED - 3D model - Other - MLESGN-A1-0000-000101-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for MLESGN-A1-0000-000101
Part Number MLESGN-A1-0000-000101
Manufacturer CREE LED
Pin Count 5
Part Category LED
Package Category Other
Footprint Name Other - MLESGN-A1-0000-000101-1
Released Date Dec 2, 2019
Last Modified Date Aug 16, 2023 11:59 AM UTC
Pinout / Pin List Click Here (Member Only)

MLESGN-A1-0000-000101 Details

Manufacturer Part Number:
MLESGN-A1-0000-000101
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Manufacturer:
Cree, Inc.
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
2
Optoelectronic Device Type:
SINGLE COLOR LED
Overall Height:
1.2 mm
Shape:
RECTANGULAR
Size:
3.5 mm
Surface Mount:
YES
