MLSS100-10-C footprint, schematic symbol and 3D model by PANCON CONNECTORS

Symbol

click to zoom

PCB Footprints

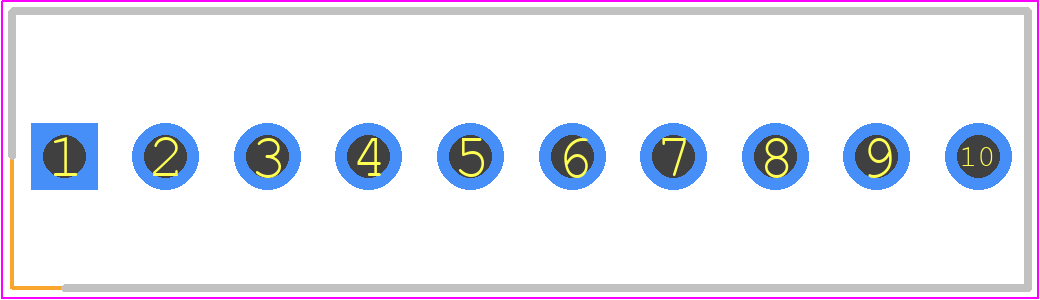

MLSS100-10-C - PANCON CONNECTORS PCB footprint - Other - Other - MLSS100-10-C

click to zoom

3D Models

MLSS100-10-C - PANCON CONNECTORS - 3D model - Other - MLSS100-10-C

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MLSS100-10-C
Part Number MLSS100-10-C
Manufacturer PANCON CONNECTORS
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - MLSS100-10-C
Released Date Mar 8, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MLSS100-10-C Details

Manufacturer Part Number:
MLSS100-10-C
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Pancon Corporation
YTEOL:
0
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (15) OVER NICKEL
Contact Finish Termination:
GOLD OVER NICKEL
Contact Gender:
MALE
Contact Material:
BRASS
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
10

MLSS100-10-C Frequently Asked Questions (FAQs)

The recommended storage condition is in a dry, cool place away from direct sunlight, with a temperature range of -20°C to 40°C (-4°F to 104°F) and humidity below 80%.
Yes, the MLSS100-10-C is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and extreme temperatures.
The maximum operating frequency for the MLSS100-10-C is 100 kHz, but it's recommended to consult the datasheet for specific frequency-related specifications.
Yes, the MLSS100-10-C is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to ensure reliable connections.
The typical power rating for the MLSS100-10-C is 100W, but it's essential to consult the datasheet for specific power-related specifications and derating curves.

Trust Checks

Community Provided

System Verified

Community Approved

MLSS100-10-C Overview

Use the download button to access the MLSS100-10-C schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MLSS1, or try a keyword search, such as Headers and Edge Type Connectors
