MLSS156-6-C - PANCON CONNECTORS

Description: PANCON CONNECTORS - MLSS156-6-C - BOARD-BOARD CONNECTOR HEADER, 6 POSITION, 1ROW

Download MLSS156-6-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MLSS156-6-C - PANCON CONNECTORS - PCB symbol
click to zoom
PCB Footprints

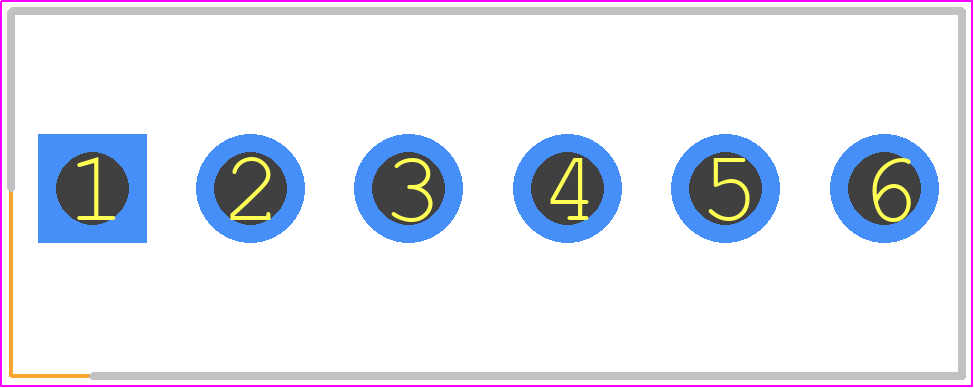

MLSS156-6-C - PANCON CONNECTORS PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - MLSS156-6-C
click to zoom
3D Models
MLSS156-6-C - PANCON CONNECTORS - 3D model - Header, Shrouded - Straight PTH Box - MLSS156-6-C
click to zoom

MLSS156-6-C Details

  • Manufacturer Part Number:

    MLSS156-6-C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Pancon Corporation

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    BRIGHT TIN OVER NICKEL

  • Contact Finish Termination:

    Bright Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

MLSS156-6-C Frequently Asked Questions (FAQs)

  • Store in a dry, cool place away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 80%.
  • Yes, but ensure proper mounting and secure the component to prevent damage. Consult the manufacturer for specific vibration testing data.
  • Use standard ESD precautions, such as wrist straps, mats, and bags, to prevent damage from electrostatic discharge.
  • Follow the standard reflow soldering temperature profile: 250°C peak temperature, 3°C/s ramp rate, and 60-90 seconds above 220°C.
  • Yes, but ensure the operating temperature does not exceed 125°C. Derate the component's performance accordingly for temperatures above 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MLSS156-6-C Overview

Use the download button to access the MLSS156-6-C schematic symbol, PCB footprint, and 3D model.
