The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure accurate temperature measurement, it is essential to calibrate the device, use a high-precision voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed in a thermally stable environment, away from heat sources and air flows.
The recommended power-up sequence involves applying the analog supply voltage (VDDA) first, followed by the digital supply voltage (VDDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential latch-up conditions.
The MLX75027RTC outputs temperature data in a 16-bit, 2's complement format. To handle this data, the host controller should be configured to read 16-bit words, and the data should be sign-extended to 32 bits for further processing.
The maximum allowed voltage on the MLX75027RTC's digital input pins is VDDD + 0.3V, with a maximum current limit of 2mA. Exceeding these limits may cause damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MLX75027RTC-ABA-210-SP Overview

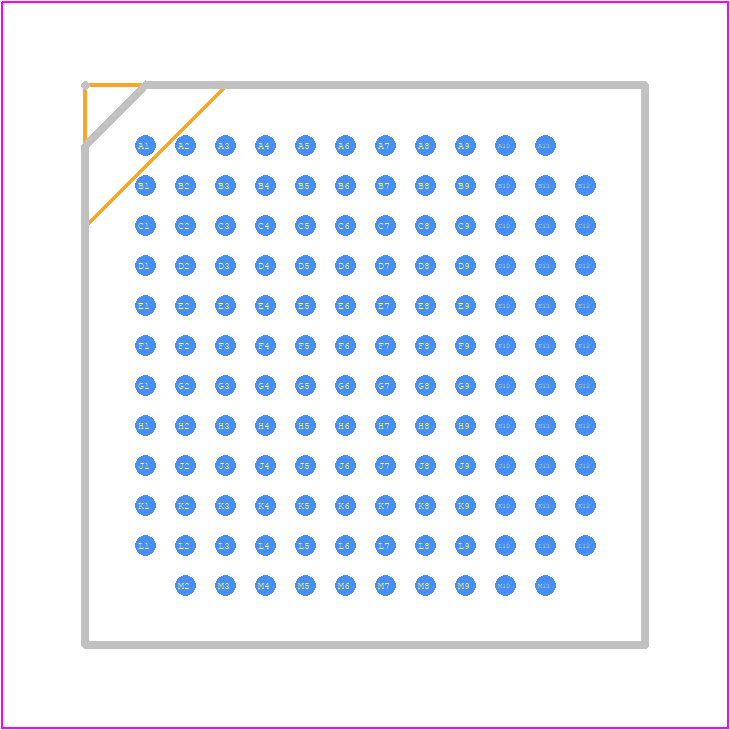

Use the download button to access the MLX75027RTC-ABA-210-SP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLX75,
or try a keyword search, such as Linear Position Sensors
